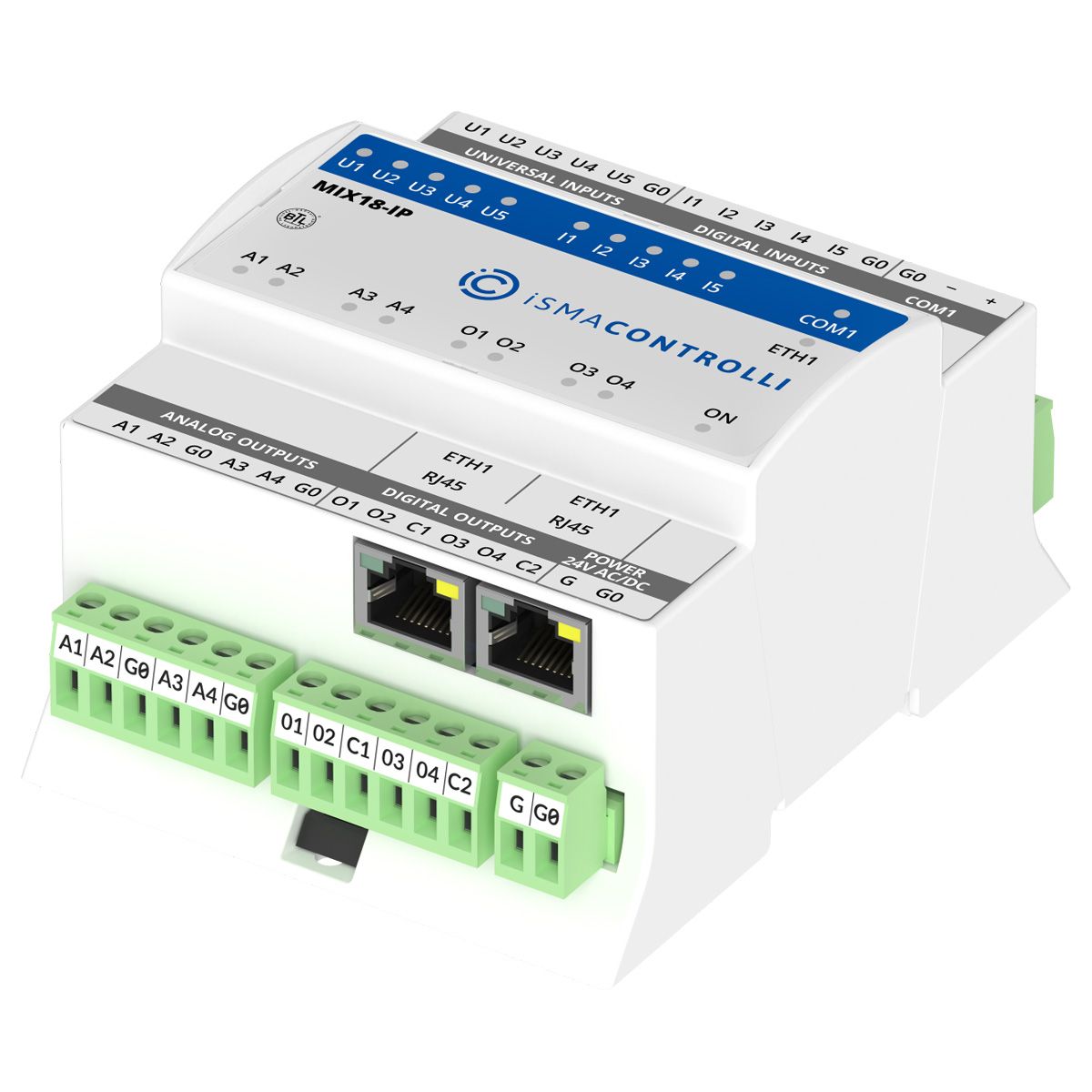

iSMA-B-MIX18-IP | iSMA Controlli | I/O module with Modbus TCP/IP or

Multiprotocol Module with a MIX of I/O's - the Ultimate Controller Extension - Powerful I/O module that works as a remote or distributed I/O over IP with open protocols, BACnet IP and Modbus TCP/IP. Open protocol standard offers the versatility of installing the modules in both new and existing facilities, whether it is a system expansion or a retrofit. The most popular types of inputs and outputs are Mixed in a space-saving design and allow the module to be a versatile controller extension, whether in a small or large facility. 5 Universal Inputs - Support for over 20 types of temperature sensors and voltage, resistance, current, and dry contact measurements on each universal input. 5 Digital Inputs - Dry contact inputs - made for monitoring. 100 Hz fast pulse counter with override function saves the real-time values to EEPROM memory. 4 Digital Outputs - Digital outputs equipped with normally open 3 A relays allow for direct control without additional relays. 4 Analog Outputs - 0-10 VDC control with 10 mA accuracy, PWM modes, and a maximum load of up to 20 mA to power external relays makes the output suitable for a variety of scenarios. Modbus TCP/IP to Modbus RTU/ASCII Gateway - Built-in Modbus gateway on the COM1 port enables integration of up to 128 Modbus slave devices to the IP layer. Simplified Configuration and Commissioning Process - The module allows for seamless configuration over BACnet, Modbus, built-in web server, or dedicated free of charge tool. The ability to be powered from a USB port facilitates local testing and enables a straightforward updating process. Two Ethernet ports working in a switch-mode allow for daisy chaining multiple modules over the RJ45, which improves the cabling process and reduces engineering time. Quality and Reliability Confirmed by Certificates - iSMA CONTROLLI is a long-standing member of the BACnet community. The experience in developing high quality products and the BTL (BACnet Test Laboratory) certification confirm the
