BAS Controllers  | SKU: ISMA-B-AAC20

iSMA-B-AAC20 | iSMA Controlli | Free programmable Advanced Application

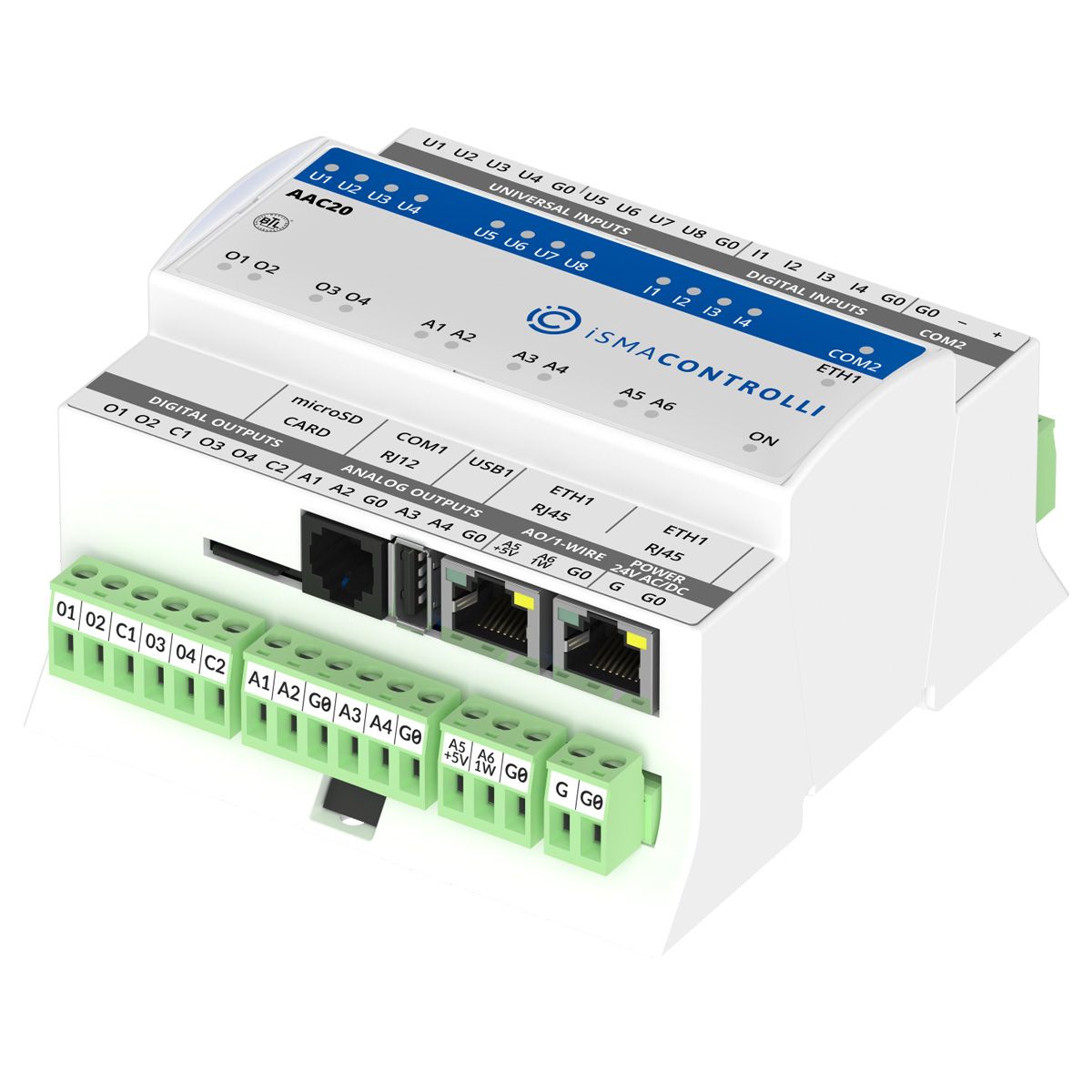

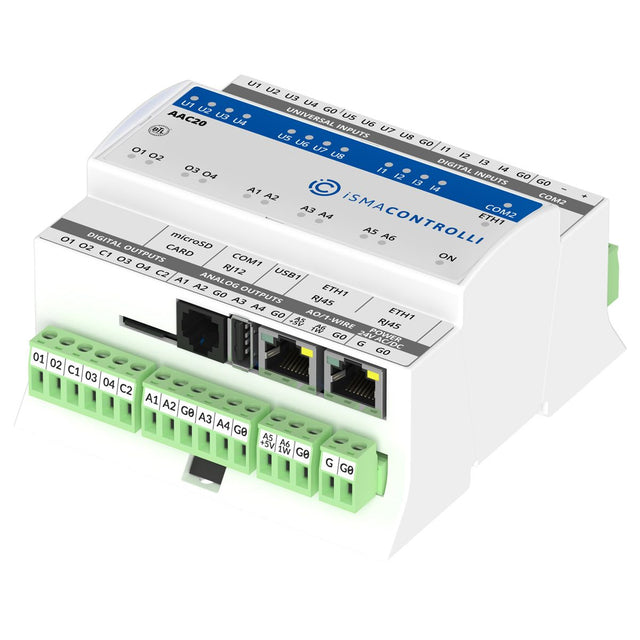

iSMA Controlli Freely Programmable Advanced Application Controller iSMA-B-AAC20
$723.33 $1,808.00
Shipping calculated at checkout.

Delivery

In stock (2 units)

Usually ships next day

Calculated at checkout

Description

AAC20 offers a rapid fast advanced application control with a possibility of creating a tailor-made application with a power and flexibility offered by the Sedona Framework. Sedona is an open-source software environment designed to make it easy to build smart, networked, embedded devices, which are well-suited for implementing control applications. Freely programmable controller with a modern programming tool, a variety of integration interfaces, and 22 onboard I/Os is suitable for a wide range of HVAC projects.

Product Specifications

Name Value
Category BAS Controllers
Data Sheet Download
Display name 1 Data Sheet
Display name 2 Installation Instructions
Features and benefits 2 Ethernet interface with built-in switch | Built-in real-time clock (RTC) | 2 RS485 interface | 4 Digital Inputs - Dry contact inputs - made for monitoring. 100 Hz fast pulse counter with override function saves the real-time values to the non-volatile memory of the controller. | ARM Cortex M4 dual core CPU | 6 Analog Outputs - 0-10 V DC control with 10 mA accuracy, PWM modes, and a maximum load of up to 20 mA to power external relays makes the output suitable for a variety of scenarios (AO5 and AO6 can only be used if the 1-Wire port is not in use, maximum current load for AO6 is up to 5 mA). | 4 Digital Outputs - Digital outputs equipped with normally open 3 A relays allow for direct control without additional relays. | 8 Universal Inputs - Support for over 20 types of temperature sensors and voltage, resistance, current, and dry contact measurements on each universal input.
P21 delete flag false
Product category BAS Controllers
Product subcategory Programmable Controllers
Restricted class id NULL
Restricted item false
Short desc iSMA Controlli Freely Programmable Advanced Application Controller iSMA-B-AAC20
Supplier part number ISMA-B-AAC20
Ultra store sync us Yes
Vendor active Y

Features and Benefits

2 Ethernet interface with built-in switch | Built-in real-time clock (RTC) | 2 RS485 interface | 4 Digital Inputs - Dry contact inputs - made for monitoring. 100 Hz fast pulse counter with override function saves the real-time values to the non-volatile memory of the controller. | ARM Cortex M4 dual core CPU | 6 Analog Outputs - 0-10 V DC control with 10 mA accuracy, PWM modes, and a maximum load of up to 20 mA to power external relays makes the output suitable for a variety of scenarios (AO5 and AO6 can only be used if the 1-Wire port is not in use, maximum current load for AO6 is up to 5 mA). | 4 Digital Outputs - Digital outputs equipped with normally open 3 A relays allow for direct control without additional relays. | 8 Universal Inputs - Support for over 20 types of temperature sensors and voltage, resistance, current, and dry contact measurements on each universal input.
