Ball Valves | SKU: Z2075QS-K

Z2075QS-K | Belimo | Control Valves & Actuators

Name: Z2075QS-K
Brand: Belimo
SKU: BEL-Z2075QSK
Price: 45.46 USD
Availability: InStock

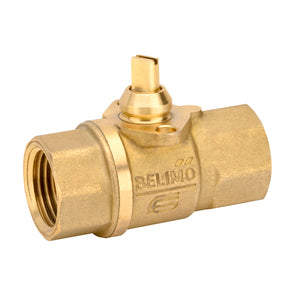

ZoneTight, Ball Valve, 2 Way, 3/4 Inch, 9.8 Cv, Sweat

$45.46 $101.00

Shipping calculated at checkout.

In stock (58 units)

Usually ships next day

FREE SHIPPING

Description

The QCV zone valves are suited for large commercial buildings where higher close-off and the ability to change flow is desired. Common applications include unit ventilators, fan coil units, VAV reheat coils, fin tube casing, radiant panels and duct coils. The valve fits in space restricted areas and can be assembled without the use of tools.

Product Specifications

Name	Value
Category	Ball Valves
Close off pressure	75 PSI
Connection type	Sweat Ends
Data Sheet	Download
Installation Guide	Download
End fitting	Sweat
Flow characteristic	Equal Percentage
Flow coefficient	9.8 Cv
Fluid type	chilled or hot water, up to 60% glycol
Material	Forged Brass
Pattern	2 Way
Pressure rating	360 psi
Product category	Control Valves & Actuators
Product subcategory	Ball Valves
Rotation	90 Deg.
Series	ZoneTight
Short desc	ZoneTight, Ball Valve, 2 Way, 3/4 Inch, 9.8 Cv, Sweat
Size	3/4 Inch
Supplier part number	Z2075QS-K
Temperature range	36...212°F [2...100°C]
Valve pattern	2-Way
Valve trim	Chrome Plated Brass
Valve type	Ball Valve
Variant weight	0.49

Features and Benefits

{'Features_and_Benefits_1': 'chilled, hot water, up to 60% glycol', 'Features_and_Benefits_2': 'Temperature Range 32F to 212F [0C to 100C]'}
