ZD6X22TZ/U

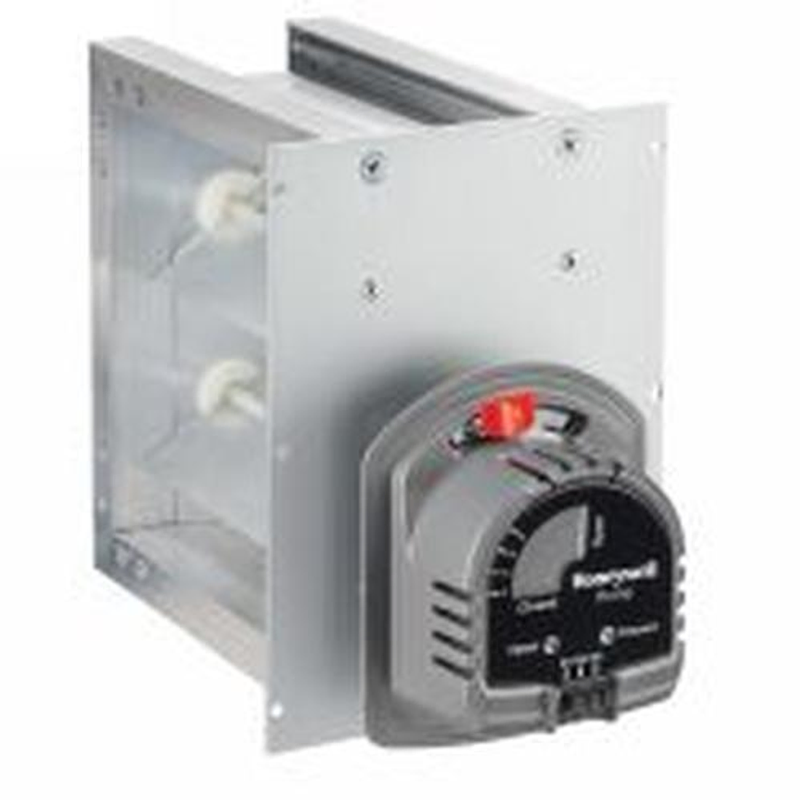

Resideo, Parallel Blade Zone Damper, Normally Open, 6 x 22 Inch, ZD6X22TZ/U
Mfr. Model: ZD6X22TZ/U
Related Documents
Description
Resideo, Parallel Blade Zone Damper, Normally Open, 6 x 22 Inch, ZD6X22TZ/U
This easy-to-wire damper includes a 24-volt motor used to control circulating air in HVAC systems. The ZD is a power close and spring open damper used when a normally-open damper is required. It's typically used with TrueZONE® and other electronic zoning systems.
Features & Benefits
- Riveted and screwed corners.
- Extruded blade seal.
- Solid construction using extruded aluminum frame and blades.
- Parallel blade design for low leakage performance.
- Quieter operation with fewer blades.
- Simple, easy-to-wire, two-wire installation.
- Reliable, strong, 24-volt spring-return actuator.
- Fail-safe, normally open operation.
- Adjustable Range Stops that are simple to use and easier to understand.
- Position Indicator for the damper blade.
Specifications
| Manufacturer | Honeywell |
| Brand/Series | Resideo |
| MFR. Model | ZD6X22TZ/U |
| Application | Rectangular Parallel Blade Zone Damper |
| Material | Aluminum |
| Shape | Rectangular |
| Size | 6 x 22 Inch |
| Type | Parallel Blade Damper |
| Voltage | 24 VAC 60 Hz |
