XEE-6112-075

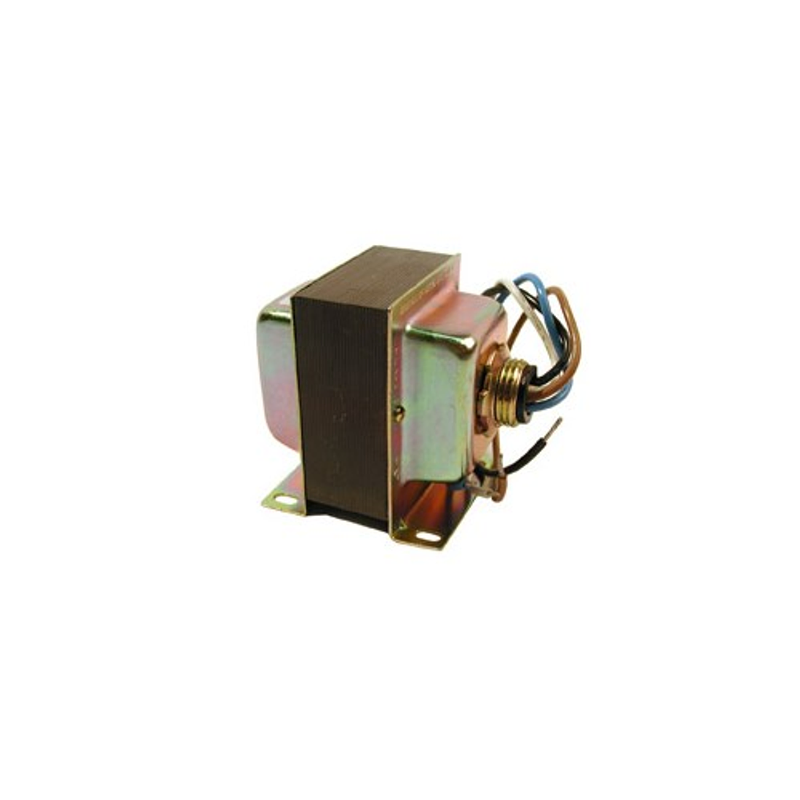

KMC Controls, Control Transformer, 75 VA, 120 VAC Primary, 24 VAC Secondary, Circuit Breaker, Dual Hubs Mount, XEE-6112-075
Mfr. Model: XEE-6112-075
Related Documents
Description
KMC Controls, Control Transformer, 75 VA, 120 VAC Primary, 24 VAC Secondary, Circuit Breaker, Dual Hubs Mount, XEE-6112-075
The KMC XEE-6000 Series Transformers Provide 24 VAC, with a Variety of Power Rating and Primary Voltage Options. The Transformers Provide Power for UL Listed or UL Recognized Applications. All Models are CE and RoHS Compliant. The Transformers can be Mounted using Either the Mounting Base Pad or the Threaded Hub[s].
Specifications
| Manufacturer | KMC Controls |
| Brand/Series | KMC Controls |
| MFR. Model | XEE-6112-075 |
| Input Voltage | 120 VAC |
| Mounting Type | Dual Hubs |
| Output Voltage | 24 VAC |
| Primary Connection | 7.5 to 9.5 Inch |
| Protective Device | Circuit Breaker |
| Secondary Connection | Leads |
| Type | Control Transformer |
| VA Rating | 75 VA |
