XEE-6111-050

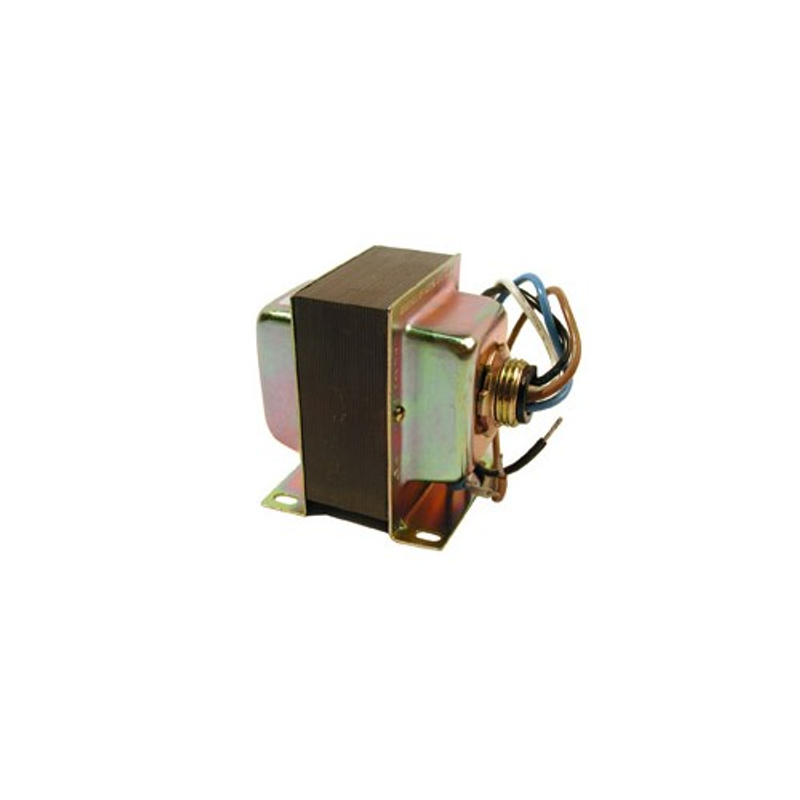

KMC Controls, Control Transformer, 50 VA, 120 VAC Primary, 24 VAC Secondary, None, Single Hub Mount, XEE-6111-050
Mfr. Model: XEE-6111-050
Related Documents
Description
KMC Controls, Control Transformer, 50 VA, 120 VAC Primary, 24 VAC Secondary, None, Single Hub Mount, XEE-6111-050
The KMC XEE-6000 Series Transformers Provide 24 VAC, with a Variety of Power Rating and Primary Voltage Options. The Transformers Provide Power for UL Listed or UL Recognized Applications. All Models are CE and RoHS Compliant. The Transformers can be Mounted using Either the Mounting Base Pad or the Threaded Hub[s].
Specifications
| Manufacturer | KMC Controls |
| Brand/Series | KMC Controls |
| MFR. Model | XEE-6111-050 |
| Input Voltage | 120 VAC |
| Mounting Type | Single Hub |
| Output Voltage | 24 VAC |
| Primary Connection | 7.5 to 9.5 Inch |
| Protective Device | None |
| Secondary Connection | Leads |
| Type | Control Transformer |
| VA Rating | 50 VA |
