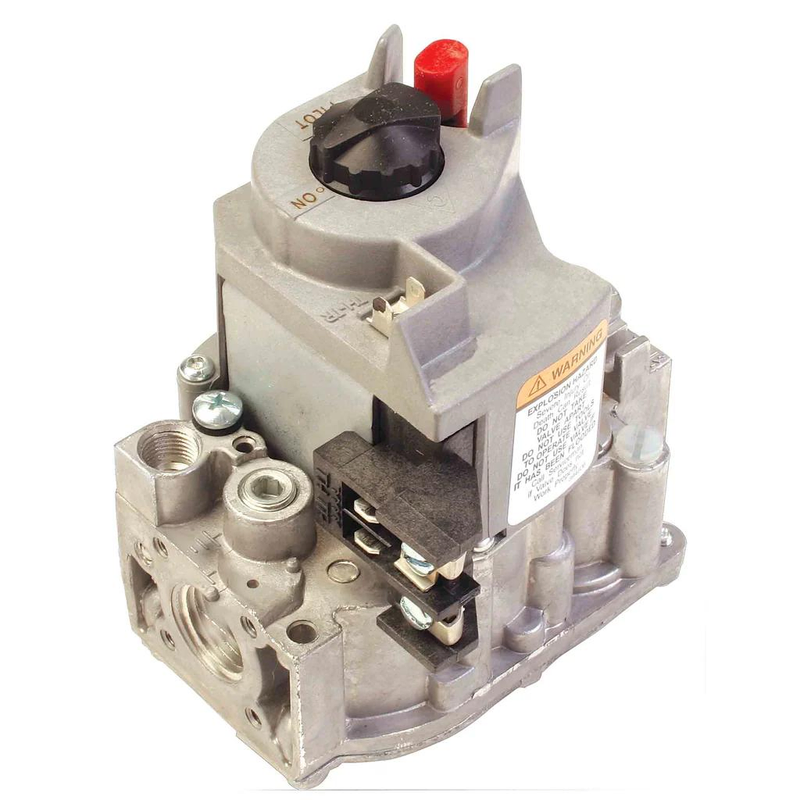

VR8200A2132/U
Resideo, Single Stage, 24 VAC, Standard Opening, Standing Pilot Gas Valve, 1/2 x 1/2 Inch, Setpoint 3.5 Inch WC, VR8200A2132/U
Mfr. Model: VR8200A2132/U
Related Documents
Description
Resideo, Single Stage, 24 VAC, Standard Opening, Standing Pilot Gas Valve, 1/2 x 1/2 Inch, Setpoint 3.5 Inch WC, VR8200A2132/U
Combination gas control for use in 24 VAC gas-fired, standing pilot appliances with capacities from 30 to 300 cf/Hour.
Features & Benefits
- Control Includes Safety Shutoff, Manual Valve, Two Automatic Operators, Pressure Regulator and Pilot Adjustment
- Compact Size
- Provides Two Automatic Valves
- Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes when Call for Heat Ends
- Diaphragm-Operated Second Automatic Valve Opens Under Control of Regulator; Closes If Gas or Power Supply is Interrupted
- Meets Codes Requiring Dual Safety Shut-Off
- All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control
- Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure under Wide Fluctuations in Gas Supply Pressure
- Compatible with ECO Connector
- LITE-RITE [OFF-PILOT-ON] Lighting Sequence
Specifications
| Manufacturer | Resideo |
| Brand/Series | VR8200 Series |
| MFR. Model | VR8200A2132/U |
| Capacity | At 1 Inch WC p.d. - 130,000 BTU/Hour: 20,000 BTU/Hour Minimum: 200,000 BTU/Hour Maximum Natural Gas |
| Configuration | Single Stage, Standard Opening |
| Electrical Rating | 24 VAC 60 Hz |
| Included Options | One 3/4 Inch Straight Flange; One 1/2 x 3/8 Inch Reducer Bushing; Natural to LP Conversion Kit |
| Inlet/Outlet Size | 1/2 x 1/2 Inch |
| Pressure Regulator Setting | 3.5 Inch WC [0.87 kPa] |
| Type | Standing Pilot Gas Valve |
