VFA-41-BV
Dwyer, Visi-Float Acrylic Flowmeter, Range .6-5 GPH Water VFA-41-BV
Mfr. Model: VFA-41-BV
Related Documents
Description
Dwyer, Visi-Float Acrylic Flowmeter, Range .6-5 GPH Water VFA-41-BV

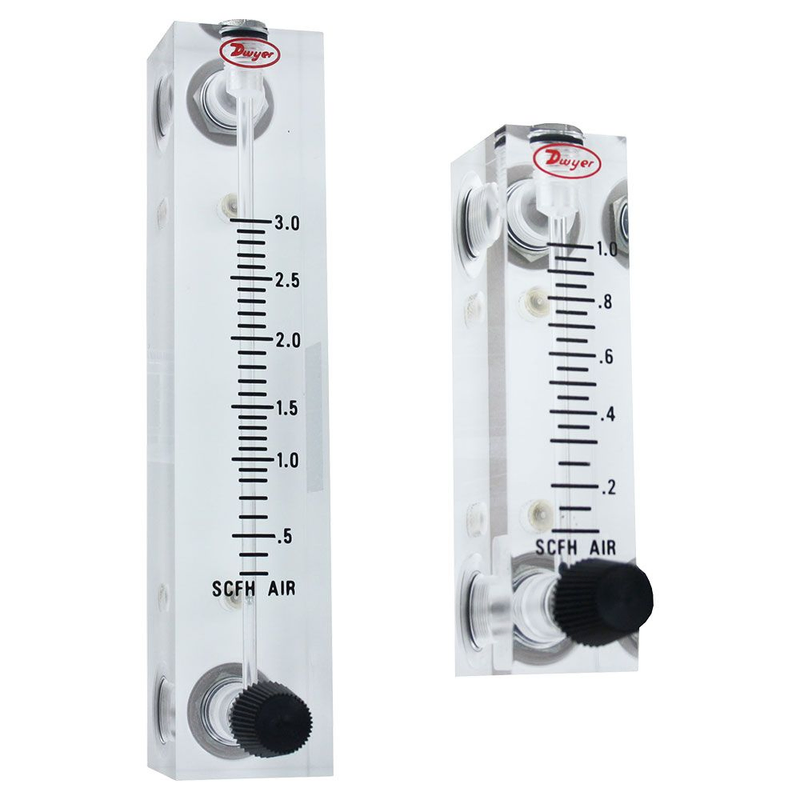

The Series VF Visi-Float Flowmeters are a line of direct reading, precision machined, clear acrylic body flowmeters suitable for both gas and liquid applications. The fabrication of the Visi-Float flowmeters is backed by over 60 years of experience in acrylic instrument machining. This Series consists of 2 Inch [51 Millimeter] and 4 Inch [102 Millimeter] scales with optional precision metering valves.
Features & Benefits
- Appealing Design Allows for Complete Visual Inspection with Bodies That are Cut and Precision Machined From Solid, Clear Acrylic Blocks
- Increased Reading Accuracy with Clear Visibility of the Float on a Smooth White Background
- Eliminates the Need for Troublesome Conversions and Increases Product Operating Life with Direct Reading Scales That are Hot Stamped Into the Plastic
- High Repeatability from Precision Machined Tapered Bores
- Low Installation Costs with Back or End Connection Options with Metal Mounting Inserts That Can Be Supported Directly By System Piping
- Service: Compatible Gases and Liquids
- Wetted Materials: Body: Acrylic Plastic, O-Ring: Buna-N [Fluoroelastomer Available], Metal Parts: Nickel Plated Brass Standard, SS Optional, Float: SS, Black Glass, Aluminum, K Monel Depending on Range
- Accuracy: 5% of FS
Specifications
| Manufacturer | Dwyer |
| Brand/Series | Dwyer VF Series |
| MFR. Model | VFA-41-BV |
| Configuration | Brass Valve |
| Float | Stainless Steel |
| Process Connection | 1/8 Inch Female NPT |
| Range | .6-5 GPH Water |
| Scale | 2 Inch |
| Type | Visi-Float Acrylic Flowmeter |
| Wetted Material | Nickel Plated Brass Wetted Parts |
