VAT-307
Dwyer, Variable Area Fluoropolymer Flowmeter, 3/8 Inch Female NPT, Flow Rate 2500 ml/min [39.62 GPH] VAT-307
Mfr. Model: VAT-307
Related Documents
Description

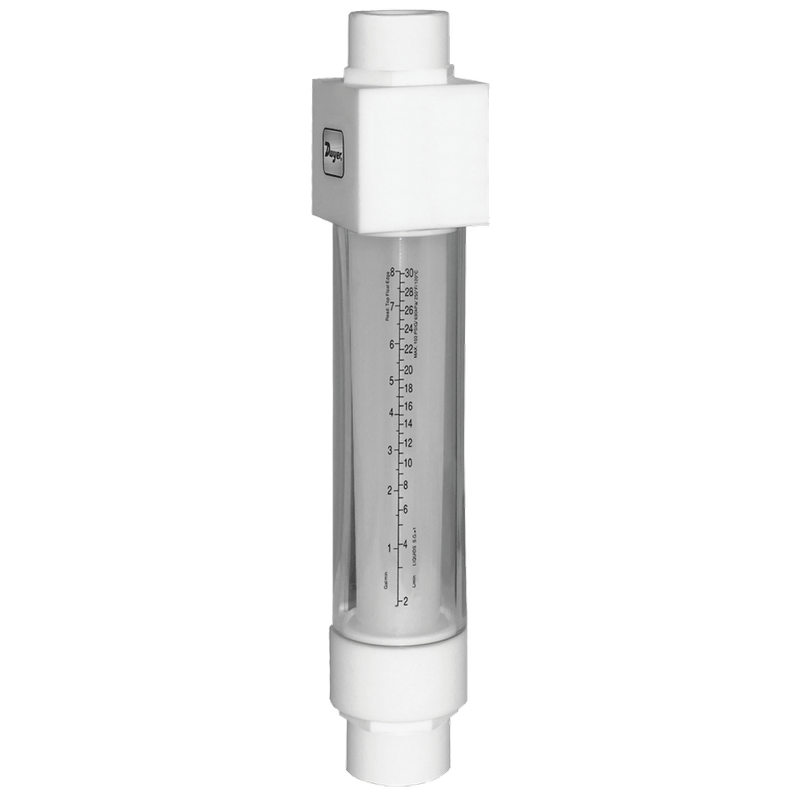

Dwyer, Variable Area Fluoropolymer Flowmeter, 3/8 Inch Female NPT, Flow Rate 2500 ml/min [39.62 GPH] VAT-307
The Series VAT Variable Area Fluoropolymer Flowmeter is ideal for high purity or corrosive liquid applications. This series of flowmeters features a 0 to 10 scale for flow indication. Each unit is individually leak tested to a leak integrity rating of 1 x 10-7 sccs Helium or better.
Features & Benefits
- Chemically Inert Wetted Components Yield Long Life Even in Corrosive Liquid Applications
- All Units are Individually Leak Tested for No Additional Cost
- Service: Compatible Liquids
- Wetted Materials: Flowtube: PFA, Float and End Fittings: PTFE, Guide Rods: PCTFE
- Temperature Limits: 250 deg F [121 deg C]
- Pressure Limit: 100 psig [6.9 bar]
- Accuracy: +/- 5% FS @ 70 deg F [21.1 deg C] and 14.7 psia [1 atm Absolute]
- Scale: Direct Reading
Specifications
| Manufacturer | Dwyer |
| Brand/Series | Dwyer VAT Series |
| MFR. Model | VAT-307 |
| Configuration | Low Range without Valve |
| Process Connection | 3/8 Inch Female NPT |
| Range | 2500 ml/min [39.62 GPH] |
| Type | Variable-Area Fluoropolymer Flowmeter |
