Description

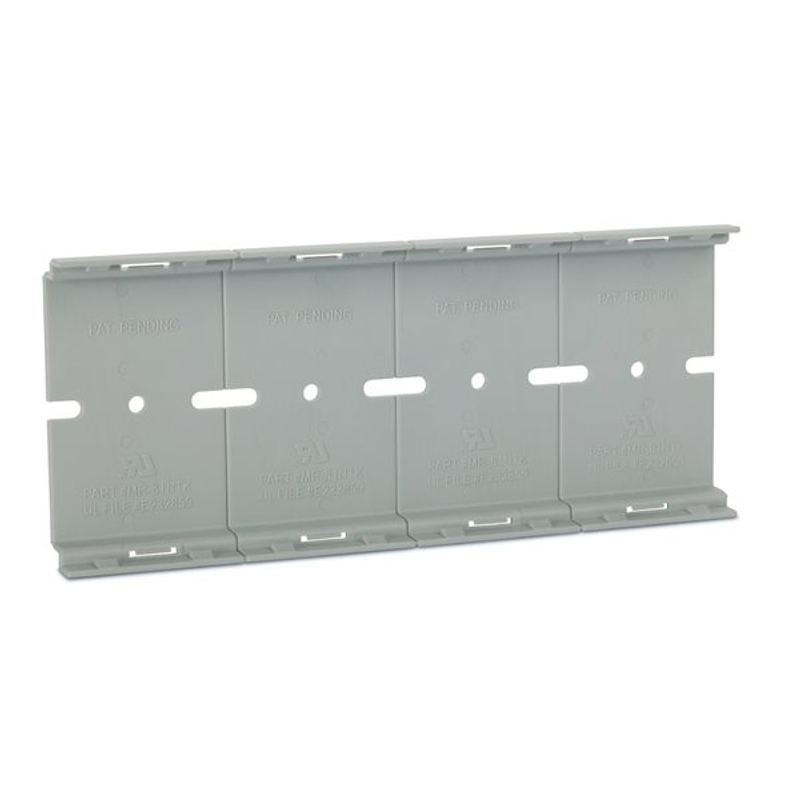

APC, PCB Mounting Track, 3.25 x 8 Inch, TK-325
TK-325 Track only "On-Track" is an innovative new track system for mounting 3.25 Inch printed circuit boards. The circuit boards simply snap in and out of the track for easy installation and service. The boards are held secure by the Built-In locking tabs which firmly clamp both the front and back surface of the board. Each 8 Inch wide section is pre-scored at 2 Inch intervals, so breaking it up into four smaller sections for smaller boards is literally a snap. Mounting the track/PCB assembly can be accomplished via two slotted or one center screw/rivet holes located on each 2 Inch section. Mounting can also be accomplished using double-sided tape.
Features & Benefits
- Clean Breaking Plastic - "No Tools Required"
- Convenient Snap Apart Scoring for 2 Inch Sections
- Allows for Both Horizontal and Vertical Mounting
- Unique Circuit Board Snap-in Tabs Allow for Easy "in and Out" Functionality While Providing Positive, Secure Board Clamping
- Low Profile Design Ensures Efficient Use of Both Lateral and Vertical Space Available
- 8 Inch Sections can be Butted Together Allowing for Unlimited Overall Lengths
- Fits Printed Circuit Boards 3.25 Inch [83 Millimeter] H x up to 8 Inch [203 Millimeter] W x 0.065 Inch [1.65 Millimeter] D
- Product Height [Without Base]: 88.9 Millimeter
- Product Length 203.2 Millimeter
- Product Width: 19.05 Millimeter
Specifications
| Manufacturer | Apollo Fire |
| Brand/Series | APC MR Series |
| MFR. Model | TK-325 |
| Application | Apollo-Fire |
| Length | 203.2mm |
| Material | Plastic |
| Type | PCB Mounting Track |
| Width | 19.05mm |
