SCE-84XM7818G

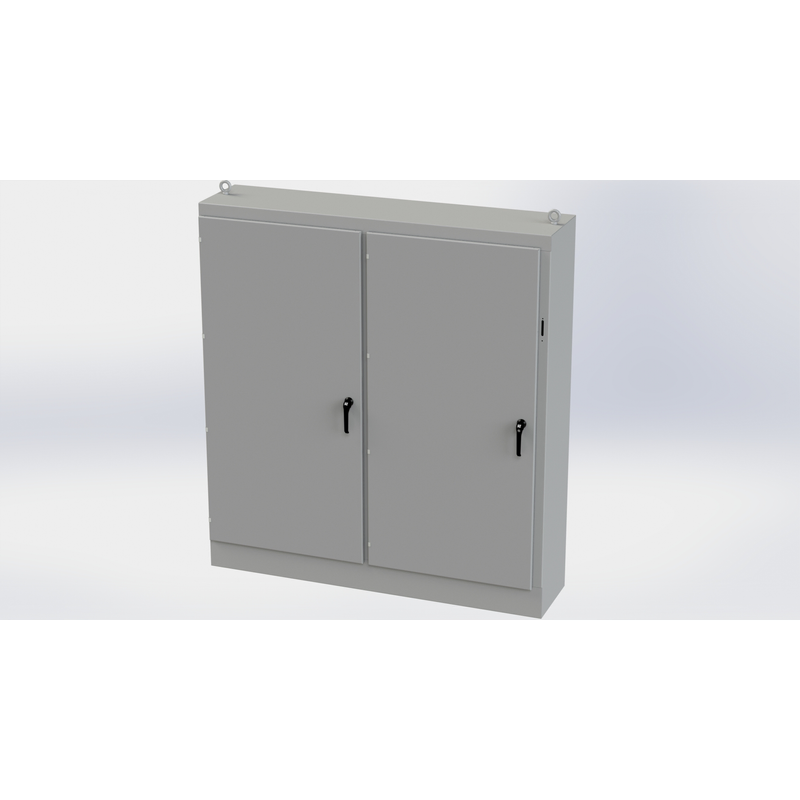

Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 84 Inch (H) x 77.75 Inch (W) x 18 Inch (D), Gray, Carbon Steel, SCE-84XM7818G
Mfr. Model: SCE-84XM7818G
Description
Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 12, 84 Inch (H) x 77.75 Inch (W) x 18 Inch (D), Gray, Carbon Steel, SCE-84XM7818G
Designed to house electrical equipment and provide protection from dirt, dust, oil and water and to house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.
Features & Benefits
- 0.125 Inch. Carbon Steel.
- Black Zinc Die Cast Coinproof/padlocking Handle on Main Door with Black Zinc Die Cast Padlocking Handle on Slave Doors.
- Body Stiffeners in Large Enclosures for Extra Rigidity.
- Concealed Hinges.
- Defeater on Master Door Requires a Screwdriver to Open.
- Ends of Latch Rods Have Ramp Shoes for Easier Door Closing.
- Flange Trough Collar Around All Sides of Door Opening.
- Ground Stud on Door and Body.
- Heavy Duty Lifting Eyes Anchor into Reinforced Top.
- 3-point Latching Mechanism.
Specifications
| Country of Origin | US |
| Manufacturer | Saginaw Control and Engineering |
| Color | Gray |
| Enclosure Depth | 18 Inch |
| Enclosure Height | 84 Inch |
| Enclosure Rating | IP 55, IEC 60529, 3R, 12 |
| Enclosure Width | 77.75 Inch |
| Finish | ANSI-61 gray powder coating inside and out. |
| Material | Carbon Steel |
| Mounting Type | Wall Mount |
