SBLT2-10M-45M

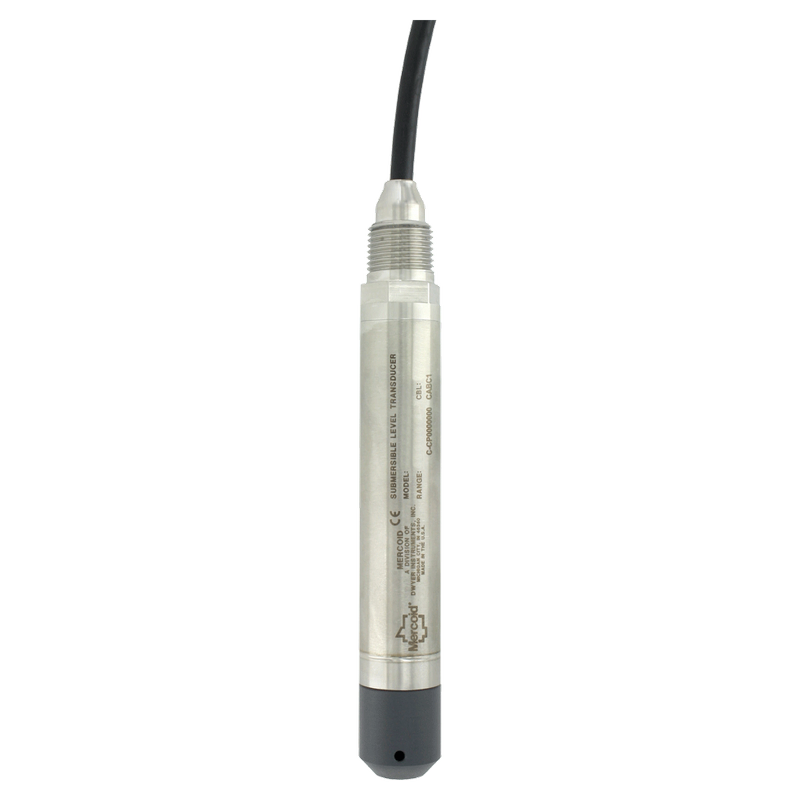

Dwyer, Submersible Level Transmitter, Range 10 Meter w.c., 45 Meter Polyurethane Cable Length SBLT2-10M-45M
Mfr. Model: SBLT2-10M-45M
Description
Dwyer, Submersible Level Transmitter, Range 10 Meter w.c., 45 Meter Polyurethane Cable Length SBLT2-10M-45M
The Series SBLT2 Submersible Level Transmitters are manufactured for years of trouble free service. These series measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezo resistive sensing element, encased in a 316 SS housing.
Features & Benefits
- Meets Application Requirements with Slim Design with Bullet Nose Design Which Protects the Diaphragm From Damage
- Increased Life with Lightning and Surge Protection Utilizing Dual Arrestor Technology, Grounded to Case, Eliminating Both Power Supply Surges and Lightning Ground Strike Transients [Surge Protection is Not Guaranteed and is Not Covered by Warranty] on SBLT2 Models
- Eliminates Particulate or Water Droplets From Entering the Transducer Using Maintenance-Free Filter
- Peace of Mind with UL Approved Intrinsically Safe on SBLTX Models for Use in Hazardous Locations When Used with Proper Barrier
- Decrease Ownership Cost with Durable, 270 lb Tensile Strength Shielded and Vented Cable and Excellent Chemical Compatibility
- Flexible Installation Options with NPT Connection To Rigidly Install in a Pipe/Conduit or Use a A-625 Hanging Loop to Attach a Chain to Remove From the Installation
- Minimal Downtime with Standard 72 Hour Lead Time
- Application: Well Monitoring, Ground Water Monitoring, Environmental Remediation, Surface Water Monitoring, Down Hole, Water Tanks
- Service: Compatible Liquids
Specifications
| Manufacturer | Dwyer |
| Brand/Series | Dwyer |
| MFR. Model | SBLT2-10M-45M |
| Cable Type | 45 Meter Polyurethane Cable Length |
| Range | 10 Meter w.c. |
| Type | Level Transmitters Submersible |
