RSF015

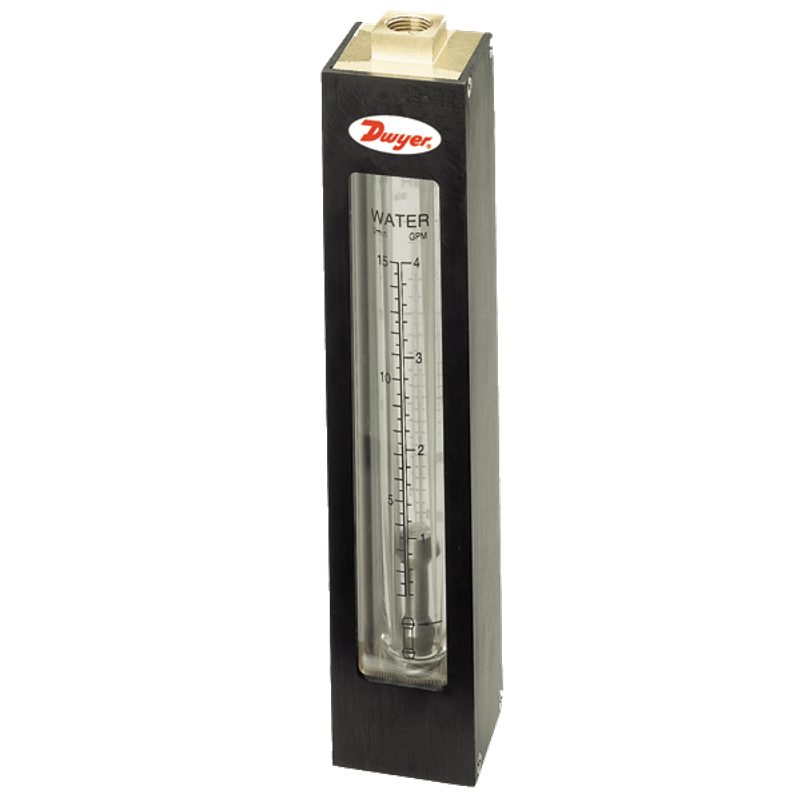

Dwyer, Rotatable Scale Flowmeter, Max. Flow Rate 30 SCFM [900 SLPM] Air, 5 GPM [20 LPM] Water RSF015
Mfr. Model: RSF015

Related Documents

Description

Dwyer, Rotatable Scale Flowmeter, Max. Flow Rate 30 SCFM [900 SLPM] Air, 5 GPM [20 LPM] Water RSF015
The Series RSF Rotatable Scale Flowmeters are ideal for the direct flow measurement of air, water, and other commonly used gases. These flowmeters are designed with direct read scales with no need for correlation charts and graduations are marked on a rotating, polycarbonate tube shield. They feature borosilicate glass tubes with brass and SS metering valve options.

Features & Benefits

  • Reflective Lens Background and 1.5 x Magnification Lens Reduces Parallax and Eye Fatigue Saving Time and Allowing for a More Accurate Reading
  • Long Operating Life with Thick Polycarbonate Front Shield That Protects Tube From Breakage and Serves as a Magnifying Lens to Enhance Reading Resolution
  • Increased Protection with Included Safety Blow-Out Back Panel for Added Safety in the Event of Breakage
  • Service: Compatible Gases or Liquids
  • Wetted Materials: Flowtube: Borosilicate Glass, Float: Brass/SS Models: 316 SS, Float Stops: Brass/SS Models: 316 SS, End Fittings: Brass/SS Models: Brass or 316 SS, O-Rings: Brass/SS Models: Fluoroelastomer
  • Temperature Limits: 250 deg F [121 deg C]
  • Pressure Limits: 150 psig [10.34 bar] @ 200 deg F [93 deg C]
  • Repeatability: +/- 0.25% FS

Specifications

ManufacturerDwyer
Brand/SeriesDwyer RSF Series
MFR. ModelRSF015
ConfigurationBrass In-Line Meter without Valve
Float316 Stainless Steel
Range30 SCFM [900 SLPM] Air, 5 GPM [20 LPM] Water
Scale127mm
TypeRotatable Scale Flowmeter
