RS9220

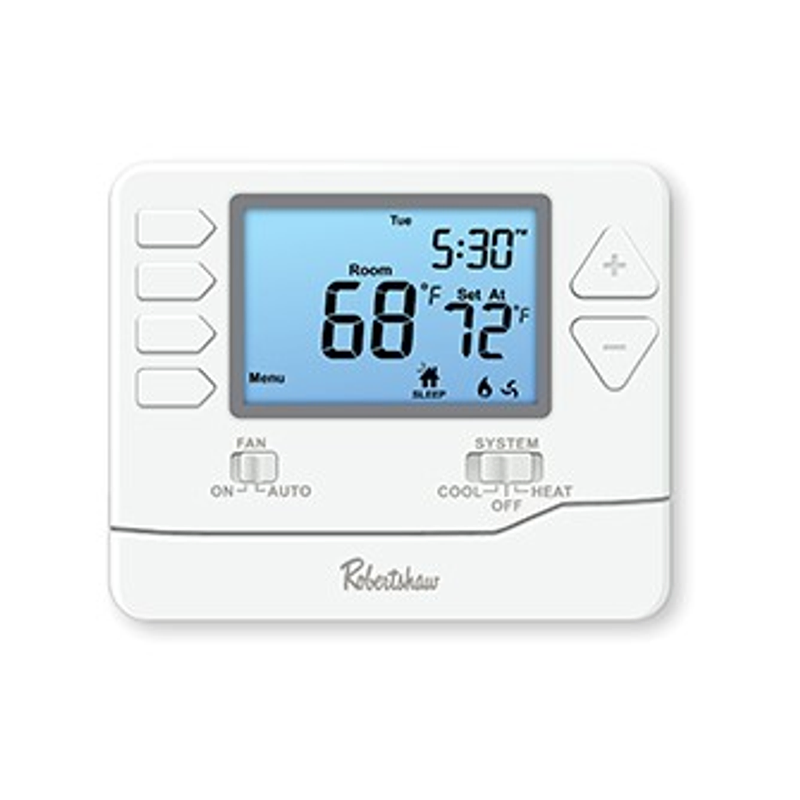

Robertshaw, RS9000 Pro-Series Programmable Wall Thermostat, Multi-Stage-2 Heat or 2 Cool, Wall or Junction Box Mount, RS9220
Mfr. Model: RS9220
Related Documents
Description
Robertshaw, RS9000 Pro-Series Programmable Wall Thermostat, Multi-Stage-2 Heat or 2 Cool, Wall or Junction Box Mount, RS9220
Contractors can Offer Owners Easy, Yet Powerful and Reliable Two-Stage Heating and Cooling Control in a Simple, Modern Design with the RS9220 Programmable Wall Thermostat. Multi-Stage - 2 Heat or 2 Cool.
Features & Benefits
- Large Terminal Blocks for Easy Installation, Universal Sub-Base, Quick-Access Menu Button, Contractor or Technician Setup Menu
- Easy-to-Understand Programming Menu, Intuitive Wake, Leave, Return, Sleep Programming Icons, 6 Year Limited Warranty
- Factory Pre-Set Energy Efficiency Program Simple, Yet Powerful Control, Large, Easy-to-Read 4.6-Square-Inch Blue Backlit Display
- Easy-Access Front-Load Battery Compartment, Adjustable Temperature Differential [Swing] for Energy Optimization and Maximum System Life
- Adjustable Room Temperature Calibration, Adjustable Setpoint Limits
- Five-Minute Selectable On/Off Compressor Delay Protection for Short-Cycling Prevention
- Dimensions - 4.7 x 3.8 x 1 Inch [119.6 x 97.6 x 26 Millimeter], Power Source - 24 VAC [18 to 30 VAC], 50/60 Hz for Hardwire [Common Wire or 2 AAA 1.5V Alkaline Batteries [Included]
- Terminals - Rh, Rc, C, Y, W, G, O, B
Specifications
| Manufacturer | Robertshaw |
| Brand/Series | Robertshaw |
| MFR. Model | RS9220 |
| Color | White |
| Stages | Multi-Stage 2 Heat/2 Cool |
| Temperature Range | 41 deg F to 95 deg F [5 deg C to 35 deg C] |
| Type | Programmable Thermostat |
| Voltage | 24 VAC |
