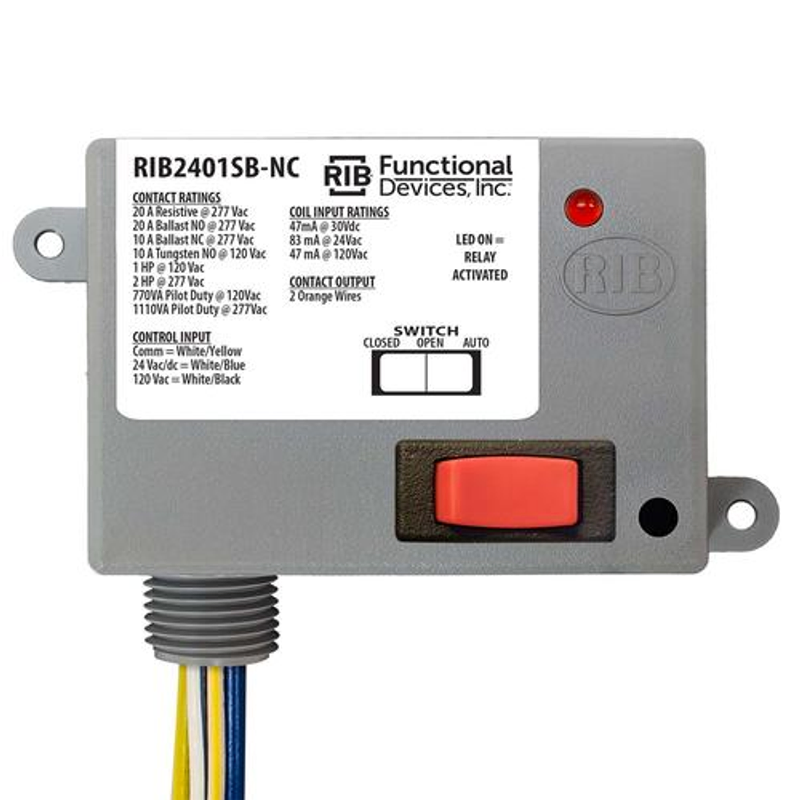

RIB2401SB-NC
Functional Devices, Power Relay, 20 Amp SPST-N/C + Override, 24 VAC/dc/120 VAC Coil, NEMA 1 Housing, RIB2401SB-NC
Mfr. Model: RIB2401SB-NC
Related Documents
Description
Functional Devices, Power Relay, 20 Amp SPST-N/C + Override, 24 VAC/dc/120 VAC Coil, NEMA 1 Housing, RIB2401SB-NC
Features & Benefits
- Approvals CE, CSFM, RoHS, UL Listed, UL864, UL916
- Expected Relay Life, 10 Million Cycles Minimum Mechanical
- Operating Temperature, -30 to 140 F
- Wire Length 16 Inch
Specifications
| Manufacturer | Functional Devices |
| Brand/Series | RIB |
| MFR. Model | RIB2401SB-NC |
| Country of Origin | US - United States |
| Tariff Number | 8536.49.0075 |
| Application | Power Relay, Prewired |
| Coil Voltage | 24 VAC/VDC, 120 VAC |
| Contact Form | SPST-NC |
| Contact Rating | 20 Amp |
| Enclosure Type | NEMA 1 |
| Mounting Type | 1/2 Inch NPT Hub |
| Type | Power Relay, Prewired |
