P2ECN-00001N01
Johnson Controls, Type 3R Expansion Panel, [W x H x D]: 30 x 42 x 8 Inch, ANSI 61 Gray Polyester Powder Coating, P2ECN-00001N01
Mfr. Model: P2ECN-00001N01
Related Documents
Description
Johnson Controls, Type 3R Expansion Panel, [W x H x D]: 30 x 42 x 8 Inch, ANSI 61 Gray Polyester Powder Coating, P2ECN-00001N01

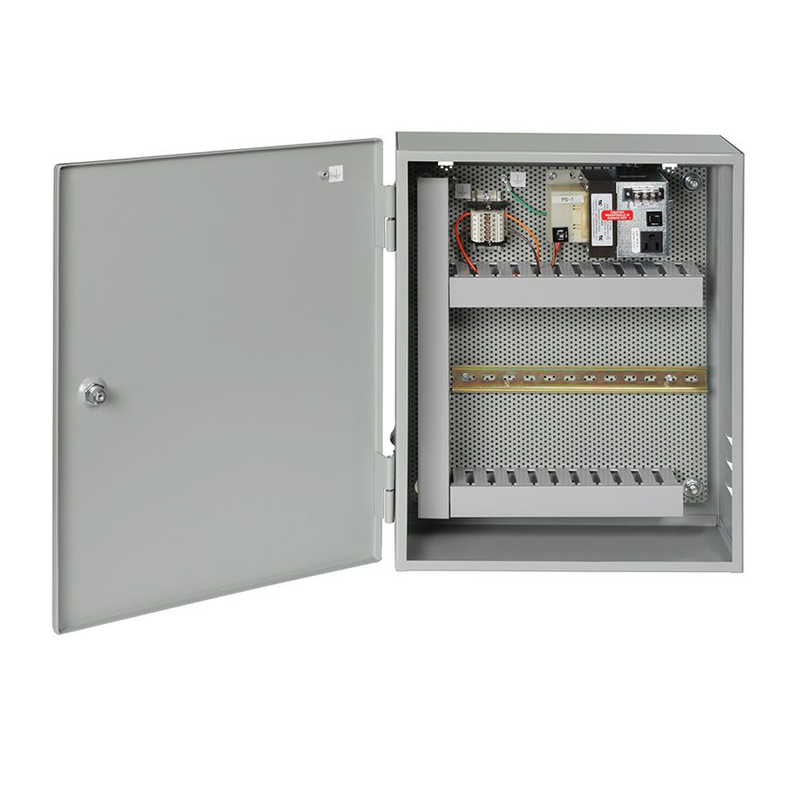

Expansion panels provide a platform for field-built custom or standard panel solutions. The control panel is pre-assembled and contains a power supply, wire management hardware, DIN rails, a perforated sub-panel, and a 24 VAC distribution terminal block that compresses the field assembly time. Digital controllers and other required components are obtained and installed separately. The design of the Johnson Controls® panel enclosures provide a solid protection package for the intelligent devices in the building automation system. The National Electrical Manufacturers’ Association [NEMA] rated control panel enclosures increase flexibility and efficiency with installations. The control panel enclosures are compliant with UL and Canadian safety standards.
Features & Benefits
- Flexibility to customize the expansion panel assembly to a wide variety of solutions that use basic panel components
- Additional items, such as digital controllers, input/output modules, relays, and contractors, are sourced locally and field mounted on the panel
- Five available sizes, all in a consistent layout
- Distribution terminal block, which provides additional connections for 24 VAC supply
- Available in NEMA/UL Type 1, NEMA/UL Type 3R, and NEMA/UL Type 3R/4/4X/12/13 rated enclosure models
- Silk-screened Johnson Controls logo on the enclosure door
- 16-gauge steel construction with industry standard ANSI 61 gray powder-coat finish for the NEMA/UL Type 1 and 3R enclosures
- Type 5052-H32 aluminum for the NEMA/UL Type 3R/4/4X/12/13 enclosures along with stainless steel door clamp assemblies
Specifications
| Manufacturer | Johnson Controls |
| Brand/Series | Johnson Controls |
| MFR. Model | P2ECN-00001N01 |
| Components | Enclosure, 96 VA Power Supply, 5-Point 24 VAC Distribution Terminal Block |
| Enclosure Finish | ANSI 61 Gray Polyester Powder Coating |
| Enclosure Material | Steel |
| Enclosure Rating | NEMA/UL Type 3R |
| Enclosure Size | [W x H x D]: 30 x 42 x 8 Inch |
| Type | Type 3R Expansion Panel |
