Product

OMA-2

Dwyer, Oxygen Flowmeter, Scale 0.3-3 LPM OMA-2
Mfr. Model: OMA-2

Related Documents

Description

Dwyer, Oxygen Flowmeter, Scale 0.3-3 LPM OMA-2

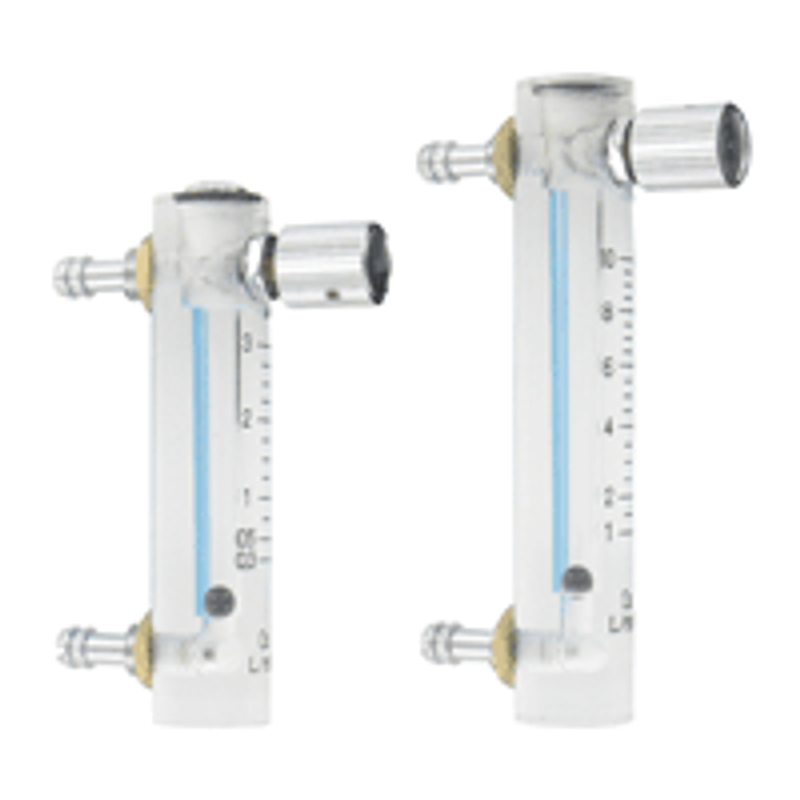

The Compact Series OMA Oxygen Flowmeter is made especially for medical applications and manually controlling flow from oxygen generators. Flow levels are kept stable by precision valve and knob adjustment. The low cost flowmeter is made from durable clear acrylic plastic. They easy-to-read scale is hot stamped into the acrylic so it will not wear off. The ball float is highly visible against the light blue background. Readings are repeatable within +/- 4% full scale accuracy.

Features & Benefits

  • Service: Oxygen
  • Wetted Materials: Acrylic and Electroplated Brass. Ball Float: Agate [OMA-2, -3, -4], O-Ring: NBR
  • Temperature Limit: 32-140 deg F [0-60 deg C]
  • Pressure Limit: 29 psi [2.0 bar]
  • Accuracy: +/- 4% of Full Scale
  • Connection: 1/4 Inch I.D. Tubing
  • Mounting: Vertical
  • Mounting: Vertical

Specifications

ManufacturerDwyer
Brand/SeriesDwyer OMA Series
MFR. ModelOMA-2
FloatStainless Steel
Process Connection1/4 Inch I.D. Tubing
Range0.3-3 LPM
Scale3-3/4 Inch
TypeOxygen Flowmeter
Wetted MaterialAcrylic, Electroplated Brass
