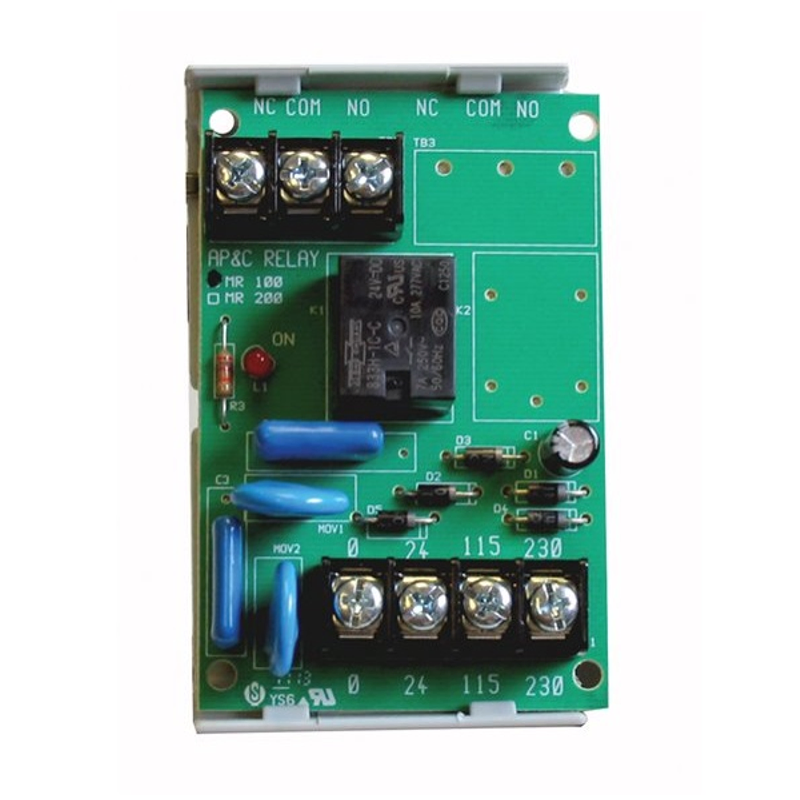

MR-101/T
APC, MR-100 Series, Multi-Voltage Relay, Energized LED, 18 mA, 1 Module Position, Track Mounted, MR-101/T
Mfr. Model: MR-101/T
Related Documents
Description
APC, MR-100 Series, Multi-Voltage Relay, Energized LED, 18 mA, 1 Module Position, Track Mounted, MR-101/T
The MR-101/T Multivoltage Control Relays offer SPDT 10 A resistive contacts which may be operated by one of four input control voltages. A single relay may be energized from a voltage source of 24 VDC, 24 VAC, 120 VAC or 230 VAC by wiring to appropriate input terminals. Single module mounted on a low profile Snap-Track and come complete with track mounting hardware which facilitates installation in standard cabinets.
Features & Benefits
- Relays may be energized from a voltage source of 18 to 35VDC or VAC, 120VAC or 230VAC
- Each relay position contains a red LED, which illuminates when the coil is energized. This provides a time saving device when checking an installed system – no metering is required
- Single, dual or triple relay modules may be “snapped apart” from standard 4-position master
- DC control inputs are polarized
- For continuous duty use at 24VAC, 24VDC, 120VAC, or 230VAC
- UL recognized relays rated at 10,000,000 mechanical operations, UL listed as Control Unit Accessory
- Humidity [Max]: 93 Percentage RH
- Humidity Note: No Condensation or Icing
- Humidity: 0 to 93 Percentage [No Condensation or Icing]
- Operating Temperature [Min]: 0 deg C
Specifications
| Manufacturer | Apollo Fire |
| Brand/Series | APC MR-100 Series |
| MFR. Model | MR-101/T |
| Configuration | 1 Module |
| Contact Form | SPDT |
| Mounting Type | DIN Rail |
| Supply Voltage | 18 to 35 VDC/VAC, 120 VAC or 230 VAC |
| Type | Multi-Voltage Relay |
