MN7505A2001/U

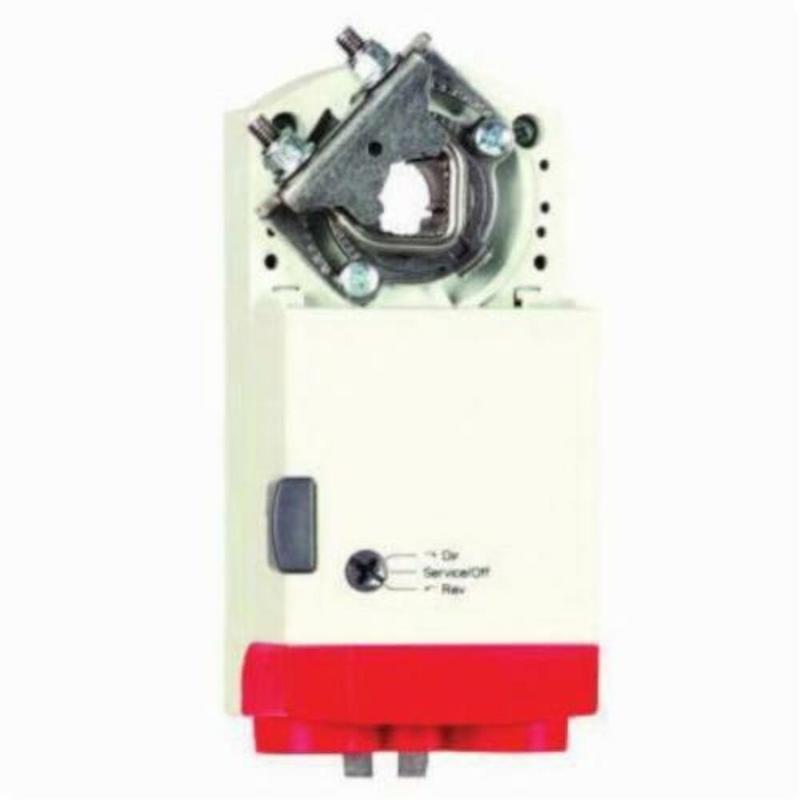

Honeywell, Damper Actuator, Direct Coupled, Non-Spring Return, 44 lb-in, 5 Nm, 24 Vac, Modulating [0/2-10 Vdc], Floating, MN7505A2001/U
Mfr. Model: MN7505A2001/U
Related Documents
Description
Honeywell, Damper Actuator, Direct Coupled, Non-Spring Return, 44 lb-in, 5 Nm, 24 Vac, Modulating [0/2-10 Vdc], Floating, MN7505A2001/U
MN6105, MN7505 44 lb-in. [5 Nm], non-spring return, direct coupled, low voltage actuators that accepts adjustable modulating [0/2-10 Vdc] or on/off [SPDT] control are used within heating, ventilating, and air-conditioning [HVAC] systems. They can drive a variety of quarter-turn, final control elements for: air dampers, air handling units, ventilation flaps, louvers, and ball valves. The W model includes a 3-foot whip.
Features & Benefits
- Mounting: Direct Coupled
- Rotational Stroke: 95 +/- 3 degrees
- Rotational Stroke Adjustment: Dual Integral Adj. Stops [3 degree increments]
- Environmental Rating: NEMA2
- Declutch for manual adjustment
- Adjustable mechanical end limits
- Removable access cover for direct wiring
- Function selection switch for selecting modulating or floating/2-position control
Specifications
| Manufacturer | Honeywell |
| MFR. Model | MN7505A2001/U |
| Angle of Rotation | 95 Deg |
| Configuration | No Aux Switches |
| Control Type | Floating; SPDT; On/Off; [0] 2-10 Vdc [4-20 mA w/500 ohm resistor] |
| Enclosure Type | NEMA 2 |
| Fail Safe | Non-Spring Return |
| Manual Override | Declutch |
| Power Supply | 24 VAC/VDC |
| Running Time [Motor] | 95 Second |
| Torque | 44 in-lbs |
| Type | Rotary Damper Actuator - Non-Fail Safe |
