ML6984A4000/U

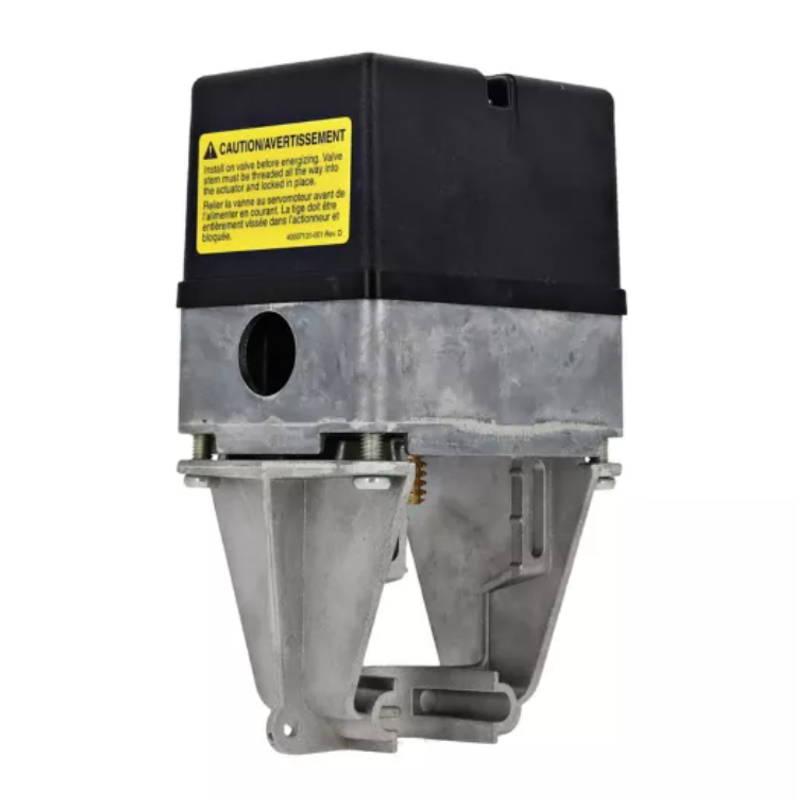

Honeywell, Linear Valve Actuator, Non-Spring Return, Floating, Two Position SPDT, 24 VAC, 160 lbf, 710 N ML6984A4000/U
Mfr. Model: ML6984A4000/U
Related Documents
Description
Honeywell, Linear Valve Actuator, Non-Spring Return, Floating, Two Position SPDT, 24 VAC, 160 lbf, 710 N ML6984A4000/U
The ML6984 is self-contained, self-adjusting, motorized valve actuators that mount directly onto V5011 two way and V5013 three way globe valves, providing linear stem operation between 1/2 Inch [13mm] and 1 Inch [25mm]. ML6984 is for use with low voltage SPDT Series 20, Series 60 [on-off], or SP3T Series 60 [floating] electro-mechanical and electronic controllers.
Features & Benefits
- Self-Contained, Motorized Globe Valve Linkage
- Microprocessor-Based Digital Position Sensing and Motor Control for Accurate Positioning
- Compact Size for Easy Installation in Confined Spaces
- NEMA 3R Rain-Proof Cover for Outdoor Installation
- Self-Calibrating for Valve Stroke from 1/2 Inch [13 Mm] to 1 Inch [25 Mm]
- DIP Switch Input Configuration Selection
- LED [Light-Emitting Diode] Status Indication
- Configurable to 3-Wire Mode for Floating Models
- 710 N 160 Lbf [712 N] Valve Closing Force
- Usable with Common Transformer Power Supply for Multiple Actuators and Controllers
Specifications
| Manufacturer | Honeywell |
| Brand/Series | Honeywell |
| MFR. Model | ML6984A4000/U |
| Angle of Rotation | 1/2 - 1 Inch Stroke [13 - 25mm] |
| Control Type | 2-Position, Floating, SPDT |
| Fail Safe | Stays-In-Place |
| Power Supply | 24 VAC |
| Torque | 160 in-lbs [710 Nm] |
| Type | Linear Electric Valve Actuator |
