MBLT-2SC-VVPP-15-50
Dwyer, Miniature Submersible Level Transmitter, .25 Percentage Accuracy, Surge Protection, 15 psi Range, 0 to 5 V, 50 Feet of Vented Polyurethane Cable [8 V Power Requirement] MBLT-2SC-VVPP-15-50
Mfr. Model: MBLT-2SC-VVPP-15-50
Description
Dwyer, Miniature Submersible Level Transmitter, .25 Percentage Accuracy, Surge Protection, 15 psi Range, 0 to 5 V, 50 Feet of Vented Polyurethane Cable [8 V Power Requirement] MBLT-2SC-VVPP-15-50

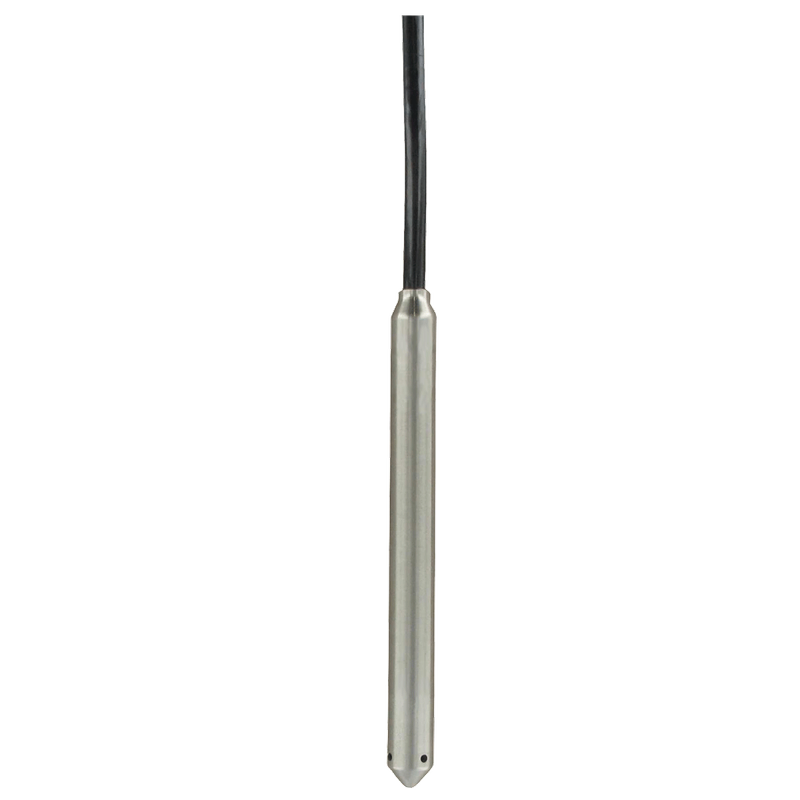

The MBLT Miniature Submersible Level Transmitter is only 0.63 Inch in diameter making it ideal for level monitoring in well and borehole applications. Constructed for years of trouble free service, the MBLT has a welded 316 SS body and 316 SS nose cap. Body top is also 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation. Featured in the MBLT is a precision ±0.10 Percentage or ±0.25 Percentage of full scale accuracy output, better than BFSL or BSL rated outputs used by most competitors. Lightning and surge protection [not guaranteed or covered by standard warranty] is included standard to stand up in harsh applications. MBLT comes with a choice of polyether polyurethane or ETFE cable materials and all are vented for barometric pressure compensation. Vent is covered with a maintenance-free filter preventing particulate or water droplets from entering the transmitter.
Features & Benefits
- Fits Narrow Installation Openings with Slender 0.63 Inch [16 millimeter] Diameter Design
- Constructed for Years of Trouble Free Service with Welded 316 SS Body and 316 SS Nose Cap
- Prevents Damage or Snares When Removing the Unit From the Installation with Tapered 316 SS Body Top
- More Precise Than BFSL or BSL Rated Output with ±0.10 Percentage or ±0.25 Percentage FS Accuracy Output
- Eliminates Particulate or Water Droplets From Entering the Transducer Using Maintenance-Free Filter
- Excellent Chemical Compatibility with Choice of Polyether Polyurethane or ETFE Cable Materials
- Eliminate Both Power Supply Surges and Lightning Ground Strike Transients with Incorporated Lightning and Surge Protection, [Surge Protection is Not Guaranteed and is Not Covered By Warranty]
- Application: Ballast Tanks, Ground Water Monitoring, Surface Water Monitoring, Dewatering, Down Hole, Remote Telemetry Applications, Remediation and Other Environmental Monitoring Applications, Remote Flood, Monitoring, Narrow Conduit or Pipe Installations
- Service: Compatible Liquids
Specifications
| Manufacturer | Dwyer |
| Brand/Series | Dwyer |
| MFR. Model | MBLT-2SC-VVPP-15-50 |
| Accuracy | .25 Percentage |
| Cable Type | 50 Feet of Vented Polyurethane Cable [8 V Power Requirement] |
| Output | 0 to 5 V |
| Range | 15 psi |
| Type | Level Transmitters Miniature Submersible |
