H221

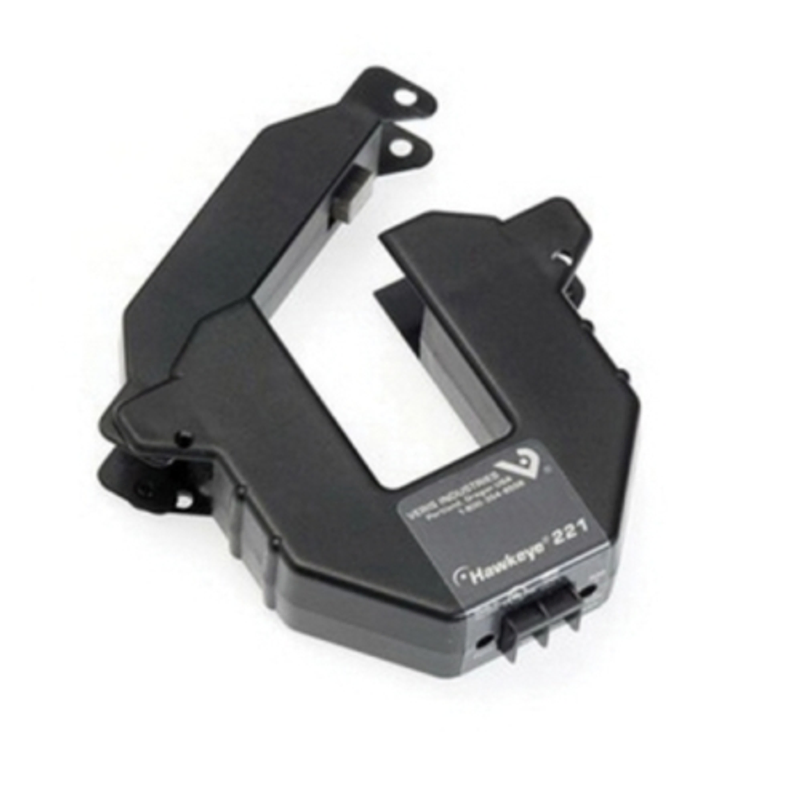

Veris, Hawkeye 0 to 300 A Input, 4 to 20 mA DC Output, High Analog Current Transducer, Split-Core, 1.6 x 1.4 Inch H221
Mfr. Model: H221
Related Documents
Description
Veris, Hawkeye 0 to 300 A Input, 4 to 20 mA DC Output, High Analog Current Transducer, Split-Core, 1.6 x 1.4 Inch H221
Hawkeye H221 Analog Current Transducers Provide Reliable Load Trending Information for Large Motor Loads (up to 2400 A), with a Proportional 4 to 20 mA Signal. The H221 Versions Include a Span Potentiometer that Allows Each Sensor to be Calibrated for Maximum Resolution.
Features & Benefits
- Split-Core Design for Easy Installation and Fast Retrofits
- No Need for External CTs on Large Conductors
- Large Openings for Heavy Conductors
- Loop Powered 4 to 20 mA Output
- 2-Wire Design Reduces Wiring Cost. Zero and Span Adjustments for Field Flexibility. 30 mA at 12 to 30 VDC Sensor Power
- UL, CE Certification
Specifications
| Manufacturer | Veris Industries |
| Brand/Series | HX21 Series |
| MFR. Model | H221 |
| Amp Range | 0-300 A |
| Output Signal | 4-20 mA |
| Type | Split-Core Analog Current Transducer |
| Window Size | 1.6 Inch |
