GFC-1143
Dwyer Gas Mass Flow Controller, Range 0-200 LPM. Specified Flow Range is for an Equivalent Flow of Nitrogen at 70 deg F [21 deg C] @ 760 Millimeter Hg, 3/8 Inch Compression Fitting GFC-1143
Mfr. Model: GFC-1143
Related Documents
Description

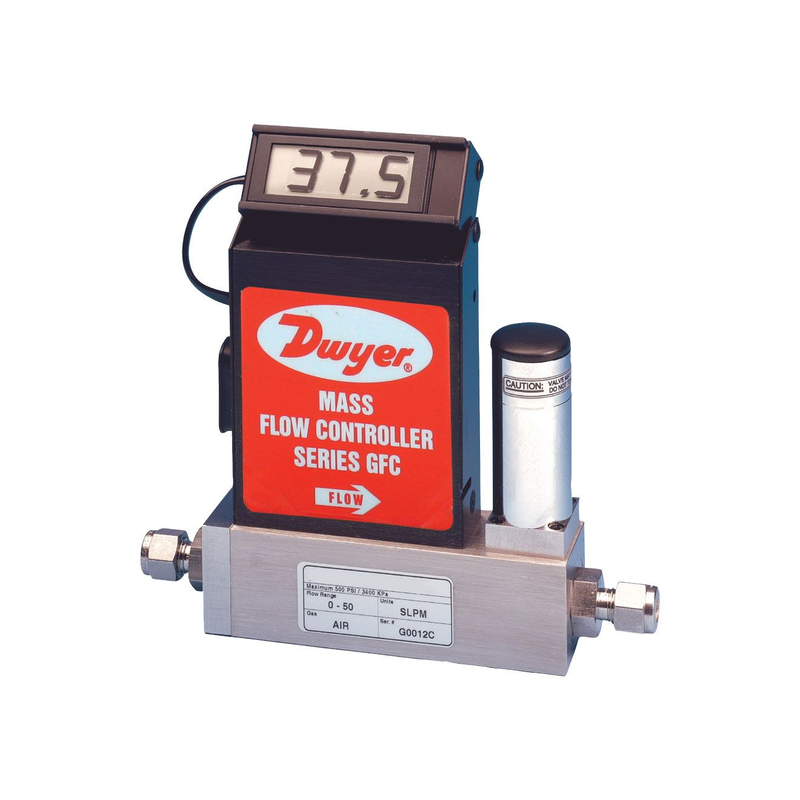

Dwyer Gas Mass Flow Controller, Range 0-200 LPM. Specified Flow Range is for an Equivalent Flow of Nitrogen at 70 deg F [21 deg C] @ 760 Millimeter Hg, 3/8 Inch Compression Fitting GFC-1143

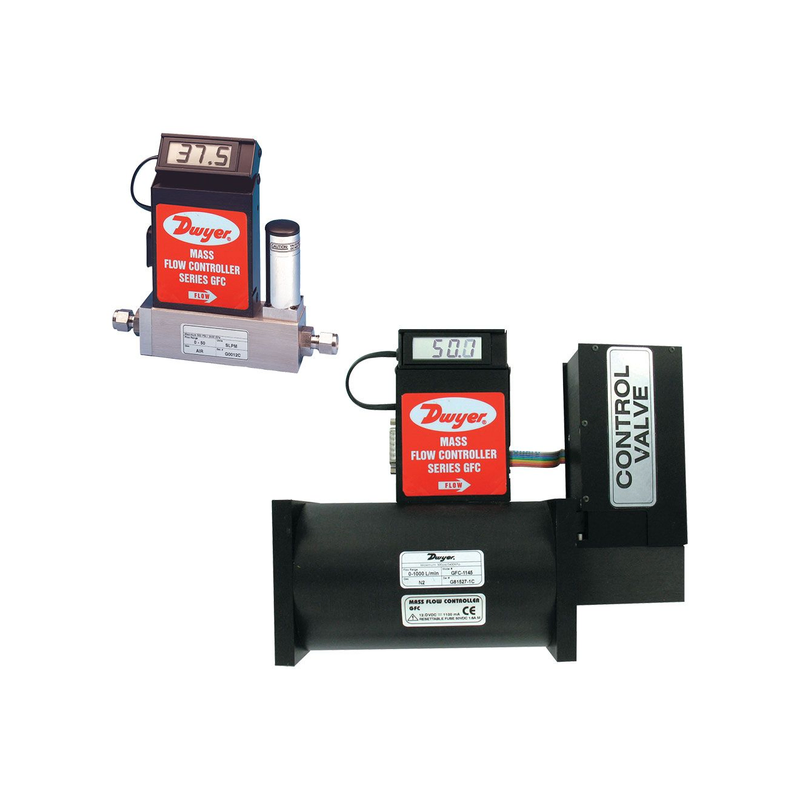

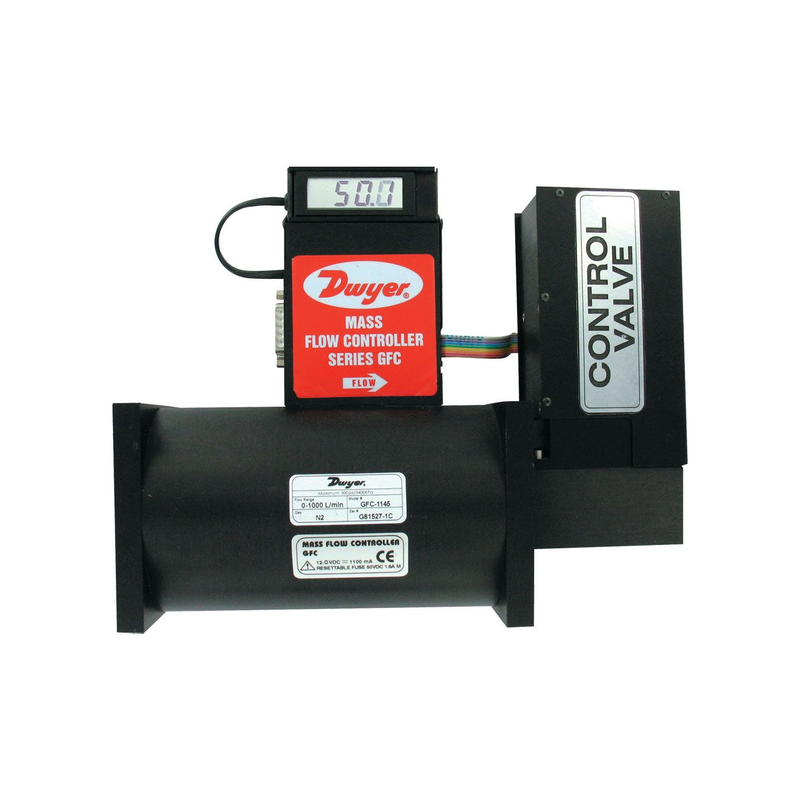

The Series GFC Gas Mass Flow Controllers combine a straight tube sensor with a restrictor flow element. It is available for flow ranges up to 1000 L/min and offered in aluminum.
Features & Benefits
- Specified Flow Range is for an Equivalent Flow of Nitrogen at 70 deg F [21 deg C] 760 Millimeter Hg
- Provides High Accuracy and Repeatability
- Flow Rates are Virtually Unaffected by Temperature and Pressure Variations
- Utilizes an Electromagnetic Valve and PID Electronics to Maintain Continuous Control by Comparing Measured Sensor Signal Set to Flow Rates
- Set Points can be Adjusted with Local Potentiometers or Remotely via 0 to 5 VDC or 4 to 20 mA Analog Signal
- Actual Gas Flow is Displayed in Engineering Units on a 3-1/2 Digit, 90 deg Tiltable LCD Readout
- Can be Used with Series GFT2 Flow Totalizer for Applications Requiring Totalization
- NIST Traceable Certificate Included
- Application:Gas Flow Measurement, Gas Flow Control, Operating Pumps and Valves, Process Equipment, Vacuum Processes, Glass and Metal Coating, Film Deposition
- Service:Clean Gases Compatible with Wetted Parts
Specifications
| Manufacturer | Dwyer |
| Brand/Series | Dwyer |
| MFR. Model | GFC-1143 |
| Application | Mass Flowmeter and Controller |
