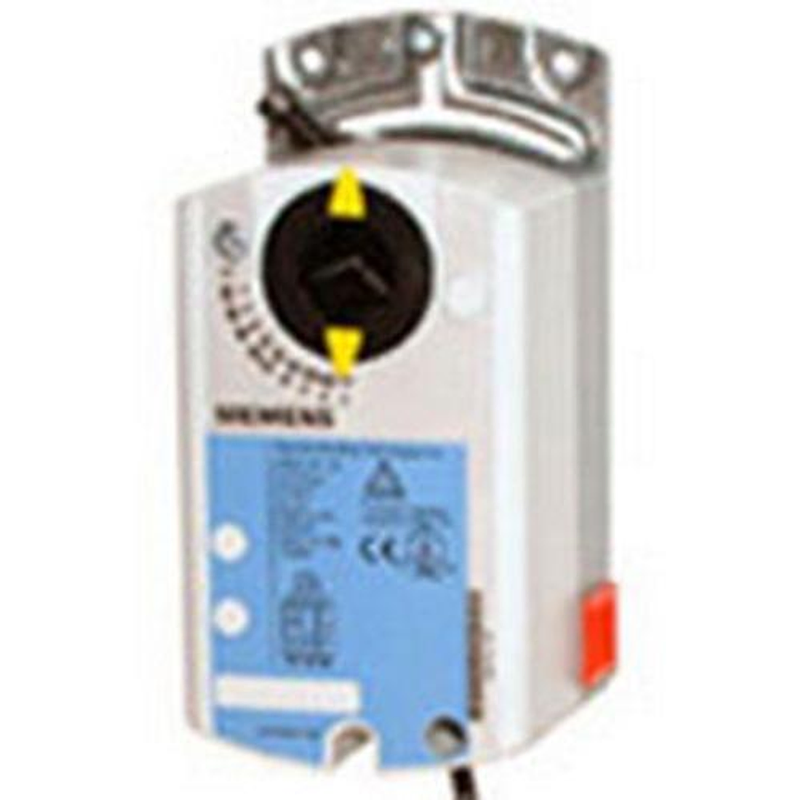

GDE146.1P
Siemens, OpenAir GDE, Damper Actuator, 90 Degree, 44 in-lb, Non-Spring Return, 24 VAC/DC, GDE146.1P
Mfr. Model: GDE146.1P
Description
Siemens, OpenAir GDE, Damper Actuator, 90 Degree, 44 in-lb, Non-Spring Return, 24 VAC/DC, GDE146.1P
Damper Actuator 44 in-lb 2-position/floating control signal, non-spring return, built in auxiliary switches, plenum rated for low torque VAV applications and small dampers.
Features & Benefits
- Maximum Temperature 130 F
- Cable Length 3 Foot
- Power Consumption 2.0 VA, 1.0 W, Watts1, VA Rating 2
Specifications
| Manufacturer | Siemens |
| MFR. Model | GDE146.1P |
| Angle of Rotation | 90 Deg |
| Control Input | 2-position;Floating control |
| Enclosure Type | NEMA 2, IP54 per EN60529, durable plastic |
| Fail Safe | Non-Spring Return |
| Power Supply | 24 VAC/VDC |
| Torque | 44 in-lbs |
| Type | Damper Actuator - Non-Fail Safe |
