FSNF120-S-FCUS

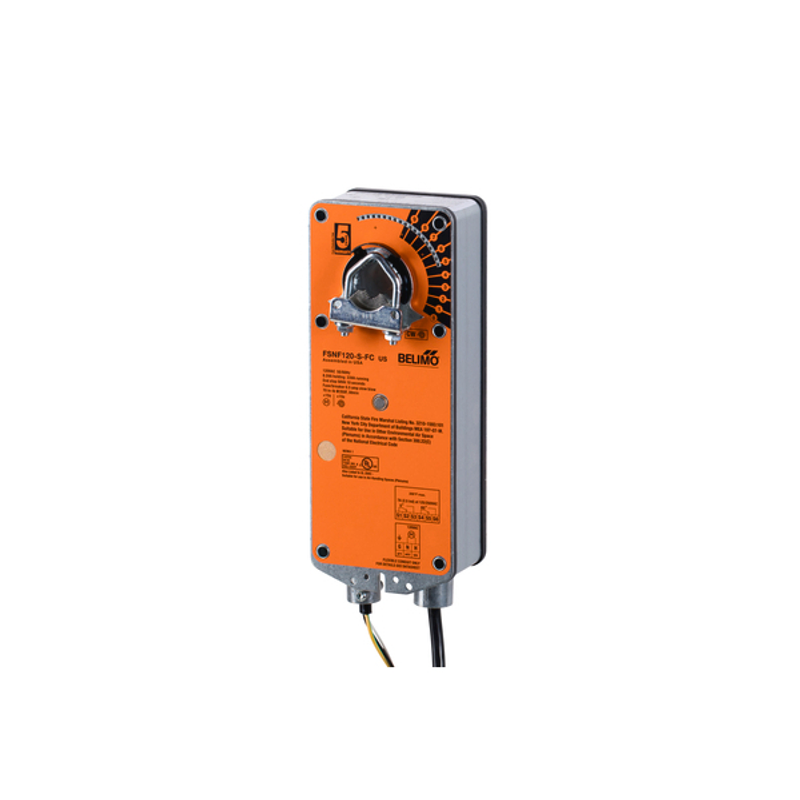

Belimo, Fire & Smoke Actuator, 70 in-lb [8 Nm] from 32...350°F [0...177°C], Spring Return, AC 120 V, On/Off, 2 x SPDT, FSNF120-S-FC US
Mfr. Model: FSNF120-S-FCUS
Related Documents
Description
Belimo, Fire & Smoke Actuator, 70 in-lb [8 Nm] from 32...350°F [0...177°C], Spring Return, AC 120 V, On/Off, 2 x SPDT, FSNF120-S-FC US
The type FSNF spring-return actuator is intended for the operation of smoke and combination fire and smoke dampers in ventilation and air-conditioning systems. The actuator will meet requirements of UL555 and UL555S when tested as an assembly with the damper and will meet requirements of UBC for 15 second opening and closing at 350degreeF. Square footage of damper operated will depend on make and model and the temperature required.
Features & Benefits
- Auxiliary Switches: 2 x SPDT
- Connection Auxiliary Switch: Cable 32 Inch [0.9 Meter], 6 x 18 AWG Appliance Connection Auxiliary Switch: Cable with 3/8 Inch Flex Connector
- Connection Supply: 3 Leads 32 Inch [0.9 Meter], 18 AWG with 3/8 Inch Flex Connector
- Ambient Temperature: 32-122 deg F [0-50 deg C]
- 70 in-lbs of torque from 32 degreeF...350 degreeF
Specifications
| Manufacturer | Belimo |
| MFR. Model | FSNF120-S-FCUS |
| Angle of Rotation | 95 Deg |
| Configuration | 2 SPDT Switches |
| Control Type | On/Off |
| Direction of Rotation [Fail-Safe] | Selectable by CCW/CW Mounting |
| Electrical Connection | Leads |
| Enclosure Type | NEMA 1 |
| Fail Safe | Spring Return |
| Manual Override | None |
| Power Supply | 120 VAC |
| Running Time [Motor] | 15 Second/90 Deg. |
| Shaft Diameter | 1/2...1.05 Inch |
| Torque | 70 in-lbs |
| Type | Fire & Smoke Damper Actuator - Fail-Safe |
