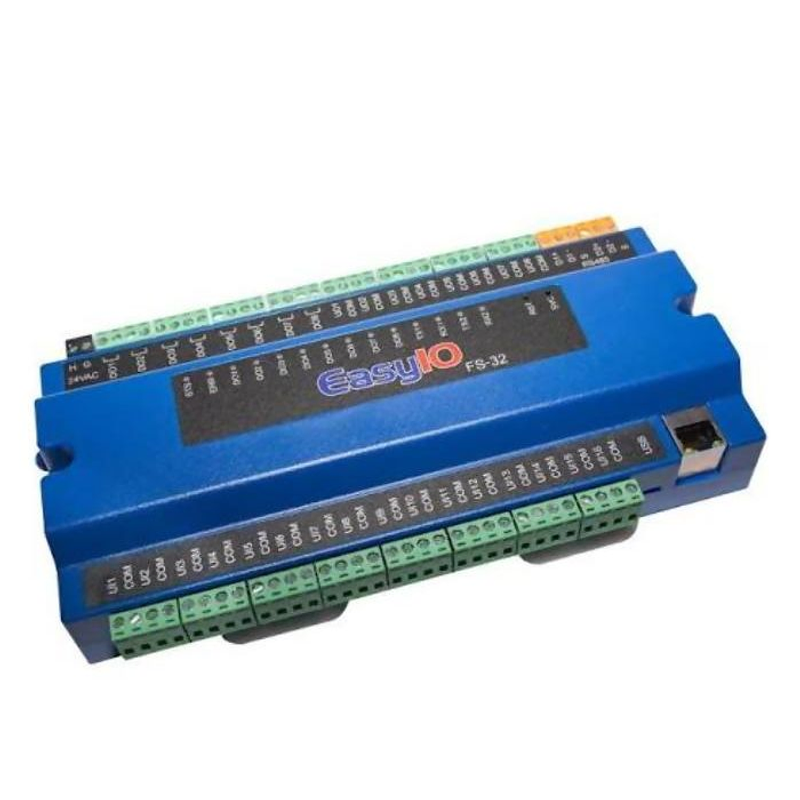

EASYIO-FS-32
EasyIO High-Performance Network Controller, 16 UI 8 DO 8 UO, BACnet MS/TP, BACnet IP, Modbus RTU, Modbus TCP, One Ethernet And Two RS-485 Ports, EASYIO-FS-32
Mfr. Model: EASYIO-FS-32
Related Documents
Description
EasyIO High-Performance Network Controller, 16 UI 8 DO 8 UO, BACnet MS/TP, BACnet IP, Modbus RTU, Modbus TCP, One Ethernet And Two RS-485 Ports, EASYIO-FS-32
The FS-32 is a high-performance network controller with a 1.2 GHz quad core processor, 1 GB RAM, 8GB flash memory, HTML5 graphics, a suite of applications and kits, and multifunctional adapter widgets.
Features & Benefits
- Onboard 8 GB of EMMC for storage and history
- Supports Enterprise Network Security 802.1x and TLS 1.3, SSL, IPv6, and DHCP Client
- BACnet MSTP Client/Server, BACnet IP Client/Server, Modbus TCP and RTU M/S, MQTT, TCOM, SOX
- EasyIO Peer to Peer Protocol, compatible with FS, FG+, FW and FT Series
- Built-in HTML 5 web server and SSL certificate support
- RESTful API and graphics web services
- Built-in VPN Server and Client
- Network Time Protocol [NTP] Client
- SMTP protocol with SSL authentication
- SQL Lite up to 100,000 records; Built-in dashboard
Specifications
| Manufacturer | Johnson Controls |
| Brand/Series | EasyIO |
| MFR. Model | EASYIO-FS-32 |
| Communication Protocol | BACnet MS/TP, BACnet IP, Modbus RTU, Modbus TCP |
| Inputs | 16 UI |
| Outputs | 8 Digital Outputs, 8 Universal Outputs |
| Power Supply | 24 VAC |
| Type | Network Controller |
