E20-4801600R-G-KIT-NS
Honeywell E-Mon Class 2000 Green Pulse Meter, 480 VAC, 1600 A, 3-Phase, NEMA 4X Raintight Enclosure, [3] Split-Core: No 2 V Current Sensors E20-4801600R-G-KIT-NS
Mfr. Model: E20-4801600R-G-KIT-NS
Related Documents
Description
Honeywell E-Mon Class 2000 Green Pulse Meter, 480 VAC, 1600 A, 3-Phase, NEMA 4X Raintight Enclosure, [3] Split-Core: No 2 V Current Sensors E20-4801600R-G-KIT-NS

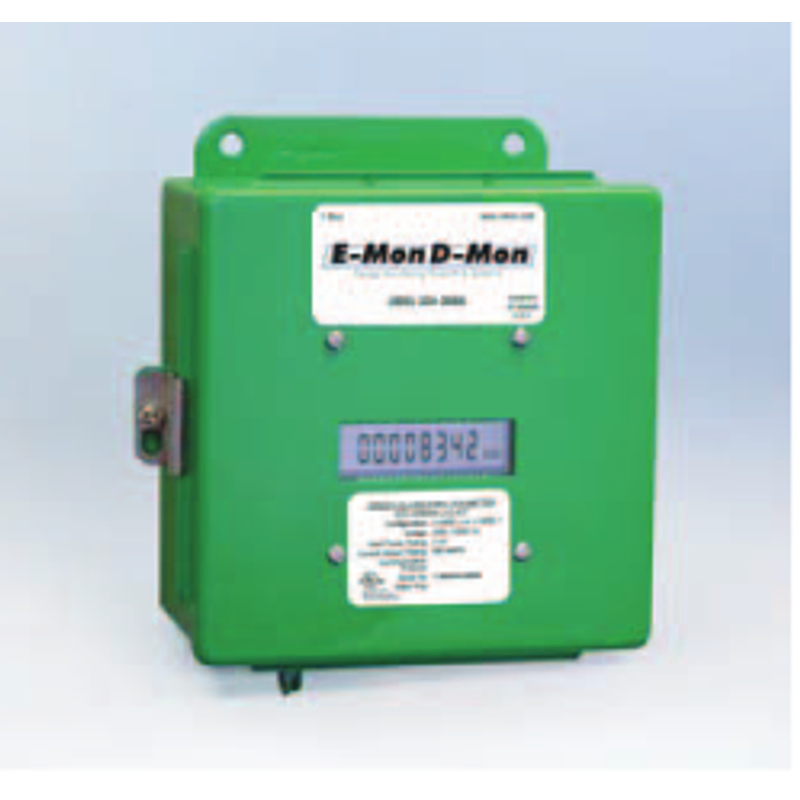

E-Mon Green Class 2000 meters display cumulative kWh and real-time kW load. In addition, these meters allow the user to enter their local cost per kWh to provide accurate to-date energy costs and projected hourly costs based on the metered load. This meter is supplied standard in a green JIC steel enclosure and is optionally available in a gray NEMA 4X outdoor enclosure or MMU configuration for installation in MMU [Multiple Meter Unit] enclosures.
Features & Benefits
- Direct-Read 2-Line Alpha-Numeric LCD Display without Multiplier Displays Cumulative kWh, Peak Demand with Date and Time and "Real-Time" kW Load
- User Entered Cost Per kWh Provides to-Date Energy Cost and Projected Hourly Cost Based on Metered Load
- Displays Total Carbon [CO2] Emissions in Pounds [lbs.] and Indicates Hourly Emissions Based on Metered Load
- Patented 0-2 Volt Output Split-Core Current Sensors Promote Enhanced Safety and Allow Remote Mounting of Current Sensors up to 2000 Feet from Meter without Power Interruption.
- Onboard Installation Diagnostics and Verification System
- Parallel up to Three [3] Sets of Current Sensors for Cumulative Reading
- Meter can be Used on the Following Configurations: 3-Phase, 4-Wire; 3-Phase, 3-Wire; For Other Configurations Contact Factory
- Fixed-Value Pulse Output
- Gray NEMA 4X Polycarbonate Enclosure
Specifications
| Manufacturer | Honeywell |
| Brand/Series | E-Mon Class 2000 |
| MFR. Model | E20-4801600R-G-KIT-NS |
| Amp Rating | 1600 A |
| Application | 3-Phase kWh Meter |
| Enclosure Type | NEMA 4X Polycarbonate Raintight Outdoor |
| Included Options | [3] Split-Core: No 2 V Current Sensors |
| Type | Green Pulse Meter |
| Voltage | 480 VAC |
