DM-2002-LCD
Dwyer, Differential Pressure Transmitter, Range .250 Inch w.c., 62.2 Pa, 6.35 Millimeter w.c., .622 mbar, Black Overlay with LCD Display DM-2002-LCD
Mfr. Model: DM-2002-LCD
Related Documents
Description

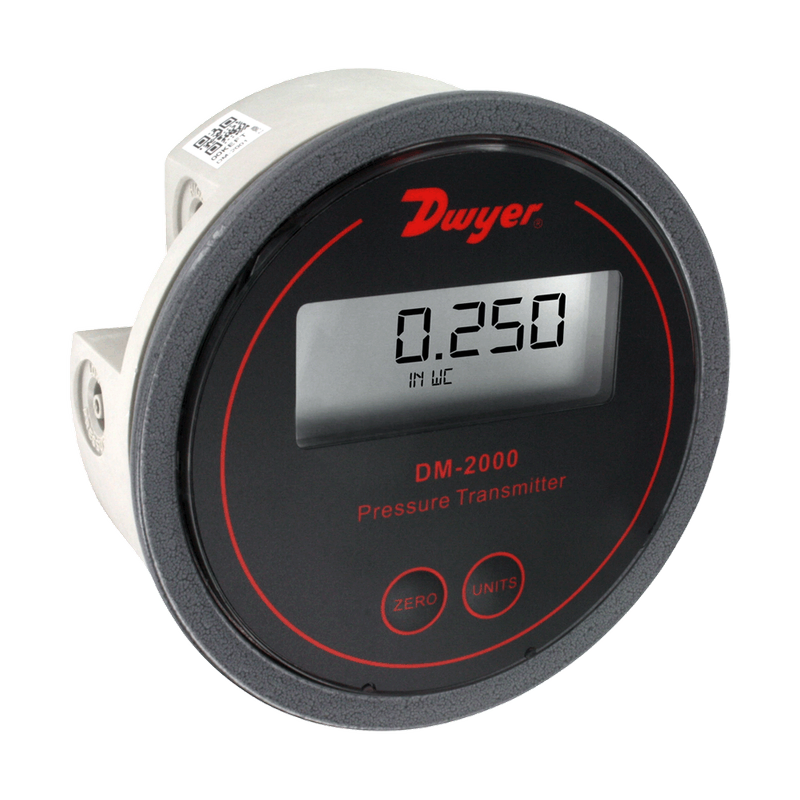

Dwyer, Differential Pressure Transmitter, Range .250 Inch w.c., 62.2 Pa, 6.35 Millimeter w.c., .622 mbar, Black Overlay with LCD Display DM-2002-LCD

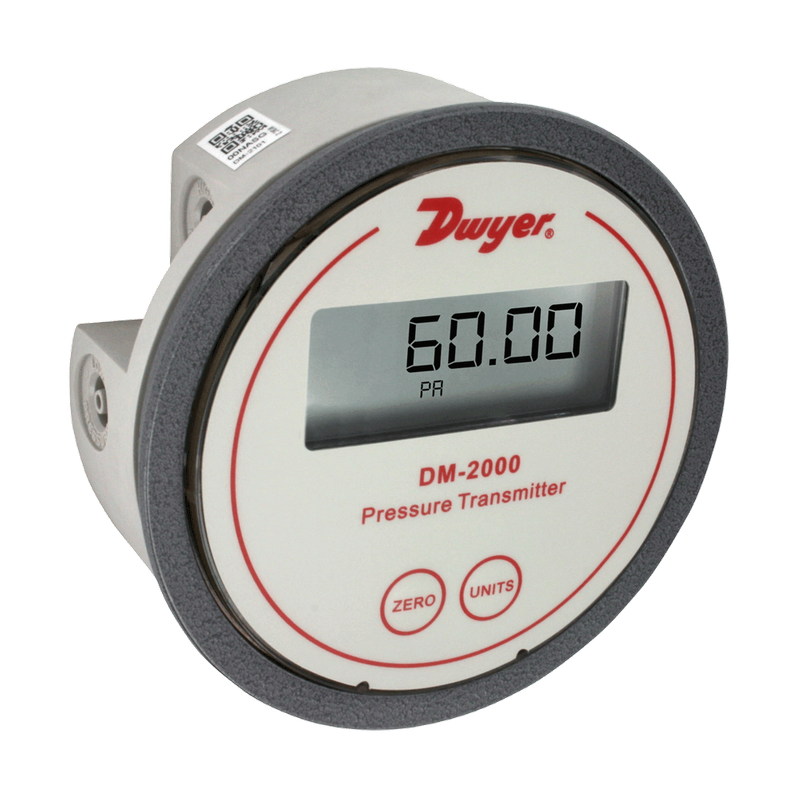

The Dwyer Series DM-2000 Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4-20 mA output signal. The DM-2000 housing is specifically designed to mount in the same diameter cutout as a standard Magnehelic gage. A wide range of models are available factory calibrated to specific ranges. Pressure connections are inherent to the glass filled plastic molded housing making installation quick and easy. Digital push-button zero and span simplify calibration over typical turn-potentiometers. An optional 3.5 digit LCD shows process and engineering units. A single push button allows field selection of 4 to 6 engineering units depending on range.
Features & Benefits
- Zero and span controls provide easy calibration checks and shorter installation time to get device running and monitoring
- Quick Response To Pressure Changes Means No Delay in Signaling and Alerting To Critical Situations
- Easy To Read LCD Display Provides Immediate Local Alerts Allowing Corrective Action To Be Taken Quicker To Eliminate the Problem From Becoming Widespread
- Same Size As Magnehelic Simplifies Field Upgrade To Digital Pressure Gage By Reducing Install Steps
- Tamper Proof Button Configuration To Prevent Accidental Changes To the Settings
- Application: Differential Pressure Across Filters, Fan Control, Static Pressures in Ducts or Buildings
- Service: Air and Non-Combustible, Compatible Gases
- Wetted Materials: Consult Factory
- Accuracy: ±1 Percentage FS, ±30 Pa Model ±4 Percentage FS at 70 deg F
- Thermal Effect: ±0.055 Percentage FS/deg F [0.099 Percentage FS/deg C], ±30 Pa Model ±0.13 Percentage FS/deg F [0.234 Percentage FS/deg C]
Specifications
| Manufacturer | Dwyer |
| Brand/Series | Dwyer |
| MFR. Model | DM-2002-LCD |
| Accuracy | +/- 1% FSO |
| Display Type | LCD Display |
| Mount Type | Panel Mount |
| Output | 4 to 20 mA |
| Range | .250 Inch w.c. |
| Type | Differential Pressure Transmitter Digital |
