CW2LAXA

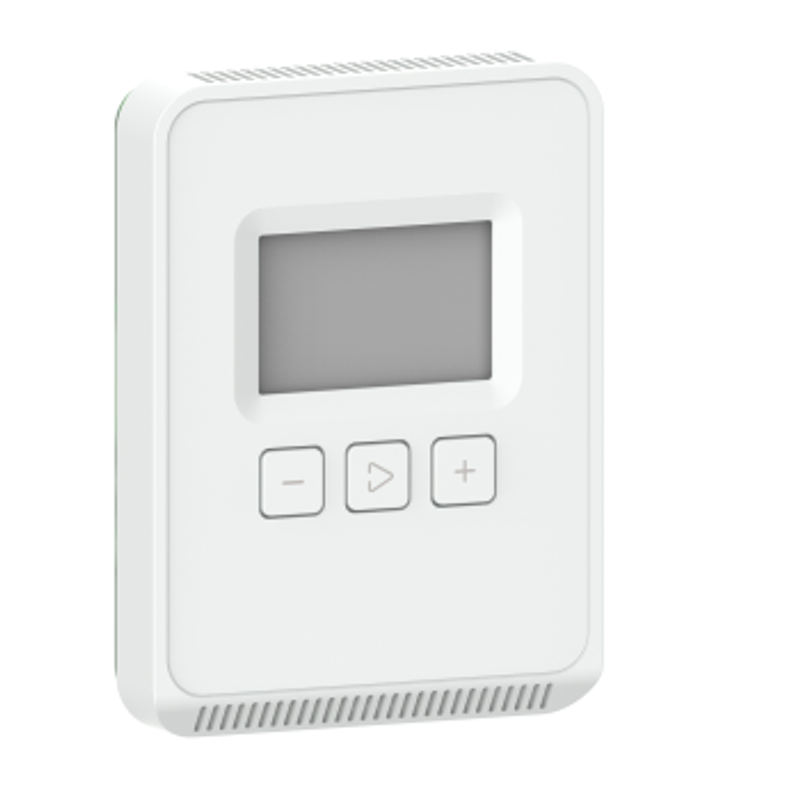

Veris, CW2 Series, Wall Air Quality Sensor, LCD, Carbon Dioxide [CO2], Temperature, Temperature: Transmitter, Matte White, CW2LAXA
Mfr. Model: CW2LAXA
Related Documents
Description
Veris, CW2 Series, Wall Air Quality Sensor, LCD, Carbon Dioxide [CO2], Temperature, Temperature: Transmitter, Matte White, CW2LAXA
The Veris CW2 Series of air quality sensors for rooms is a flexible multi-sensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc or 0 to 10Vdc outputs. CW2 Series sensors are available with three user interface options: touchscreen, LCD with three buttons and blank. CO2 and temperature sensors are included with all CW2 Series air quality sensors. Models with VOC sensors and relative humidity sensors are also available.
Features & Benefits
- LCD screen with buttons
- High CO2 accuracy: NDIR Non-dispersive infrared [NDIR], diffusion sampling
- CO2 Measurement Accuracy: ±30 ppm ±3% of measured value
- Solid State, integrated circuit temperature sensor
- Temperature measurement accuracy: ±0.2 °C [±0.4 °F] typical
- Easy to install: snap on covers with security screw simplify installation and service
- Easy Maintenance: Self Calibrating
- Field Selectable outputs
- Lower installation and service costs with multi sensor platform
Specifications
| Manufacturer | Veris Industries |
| Brand/Series | Veris |
| MFR. Model | CW2LAXA |
| Color | Matte White |
| Display Type | LCD |
| Measured Values | Carbon Dioxide [CO2], Temperature |
| Output Signal | Analog Output: Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V |
| Sensor Type | Temperature: Transmitter |
| Type | Wall Air Quality Sensor |
