CSDSC-VFD2

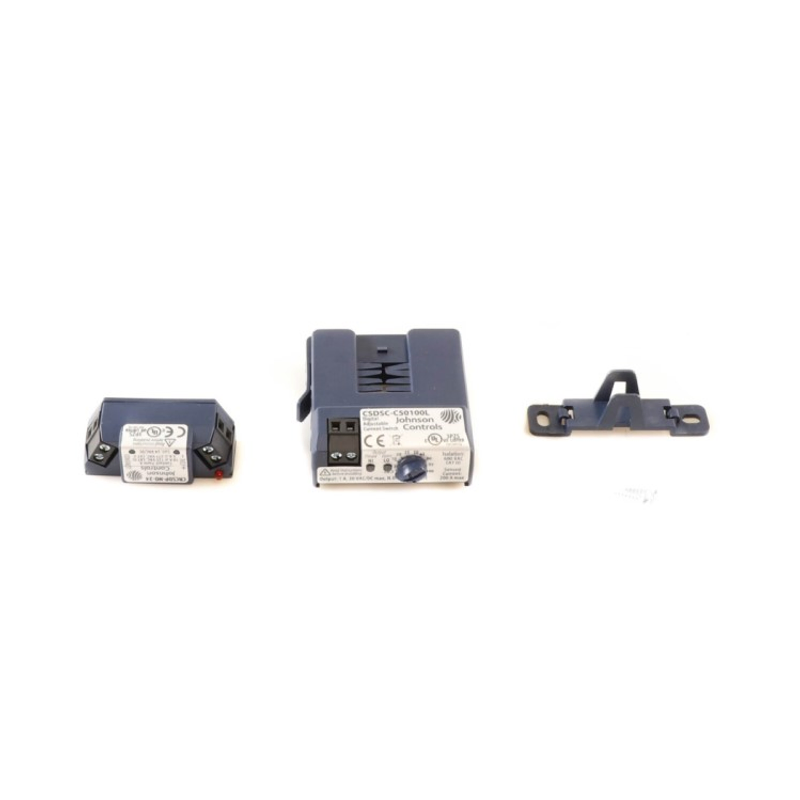

Johnson Controls, Current Switch, 1 A at 30 Hz/1.5 A at 20 Hz/2.5 A at 10 Hz, 135 A, Normally Closed, 10 A at 125 VAC CSDSC-VFD2
Mfr. Model: CSDSC-VFD2
Related Documents
Description
Johnson Controls, Current Switch, 1 A at 30 Hz/1.5 A at 20 Hz/2.5 A at 10 Hz, 135 A, Normally Closed, 10 A at 125 VAC CSDSC-VFD2
The CSDSC Series Self-Calibrates to Detect Proof of Flow on Both Variable-Frequency Drive [VFD] and Constant Volume Motors on Fans or Pumps. The CSDSC Switches Automatically Set the Correct Threshold, Which Eliminates False Alarms Associated with Varying Frequencies.
Features & Benefits
- Self-Calibrating for Proof of Flow
- From 1 A to 135 A at Minimum 30 Hz From 1.5 A at 20 Hz From 2.5 A at 10 Hz
- Aperture Dimensions - 0.75 x 0.75 Inch You Can Use the Switch for Oversize Conductors Due to the Large 0.75 Inch Aperture
- Mount The Sensor without Removing The Conductor, Which Reduces Installation Costs
- Clamp The Switch Onto The Conductor with The Iris, Use The Detachable Base to Screw, or Din Mount
- Certification: cULus, UL
- Maintenance-Free. No Call Backs
- Eliminates Hazardous Calibration in Energized Enclosures
- Setpoint Operation
- Certification: cULus, UL
Specifications
| Manufacturer | Johnson Controls |
| Brand/Series | Johnson Controls |
| MFR. Model | CSDSC-VFD2 |
| Application | Applications Include Detection of Motor Undercurrent Conditions Such as Belt Loss, Coupling Shear, and Mechanical Failure on Fixed Speed and Variable Fans and Pumps. |
| Contact Form | Normally Closed |
| Sensing Range | 135 Amp |
| Type | VFD Current Switch with Relay |
