BA/T1K20TO120F-I-4-SS-BBX

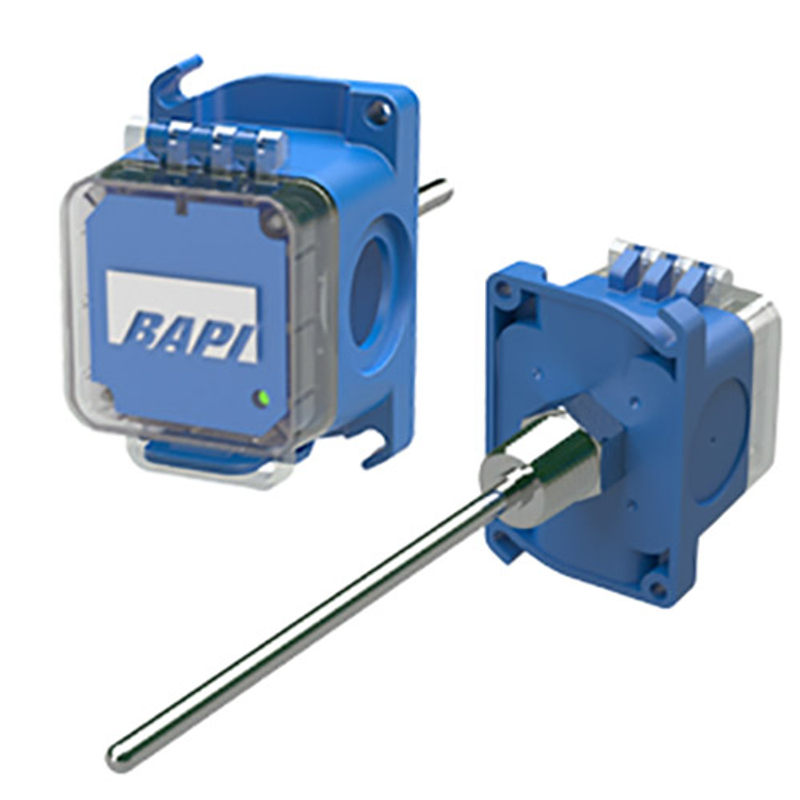

BAPI Immersion Temperature Transmitter, Stainless Steel Fitting, 4 Inch [100mm] Probe Length, 4 to 20 mA Temperature Output, 20 to 120 deg F Temperature Range, BAPI-Box Crossover [BBX] Enclosure BA/T1K[20 TO 120F]-I-4-SS-BBX
Mfr. Model: BA/T1K20TO120F-I-4-SS-BBX
Related Documents
Description
BAPI Immersion Temperature Transmitter, Stainless Steel Fitting, 4 Inch [100mm] Probe Length, 4 to 20 mA Temperature Output, 20 to 120 deg F Temperature Range, BAPI-Box Crossover [BBX] Enclosure BA/T1K[20 TO 120F]-I-4-SS-BBX
Immersion Transmitters with Stainless Steel Fittings have a output 4 to 20 mA. The sensor is potted inside a 1/4 Inch stainless steel probe with a thermally conductive compound. All units include etched Teflon lead wires and double encapsulated sensors to create a watertight package. Immersion Probes are available with a BAPI-Box Crossover [IP10, NEMA 1] enclosure with green power LED.
Features & Benefits
- Probe Length Fits Standard BAPI Thermowell Lengths
Specifications
| Manufacturer | BAPI |
| MFR. Model | BA/T1K20TO120F-I-4-SS-BBX |
| Application | Immersion Temperature Transmitter |
| Enclosure Type | NEMA 1 - BAPI-Box Crossover |
| Output Signal | 4 to 20 mA |
| Probe Length | 4 Inch |
| Probe Material | Stainless Steel - Stainless Steel Fitting |
| Temperature Range | 20 to 120 deg F |
