685-10-V

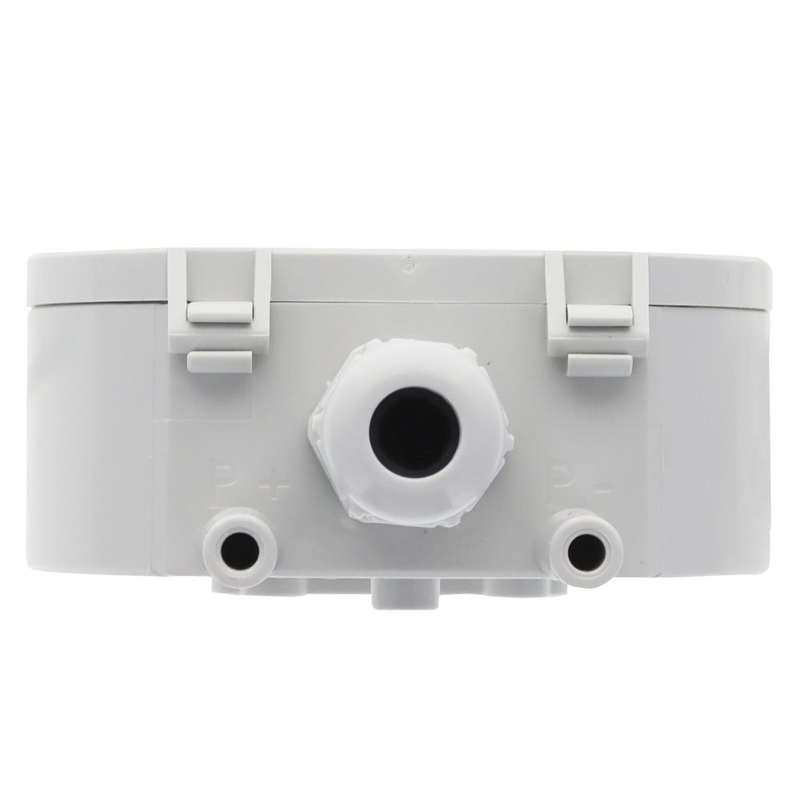

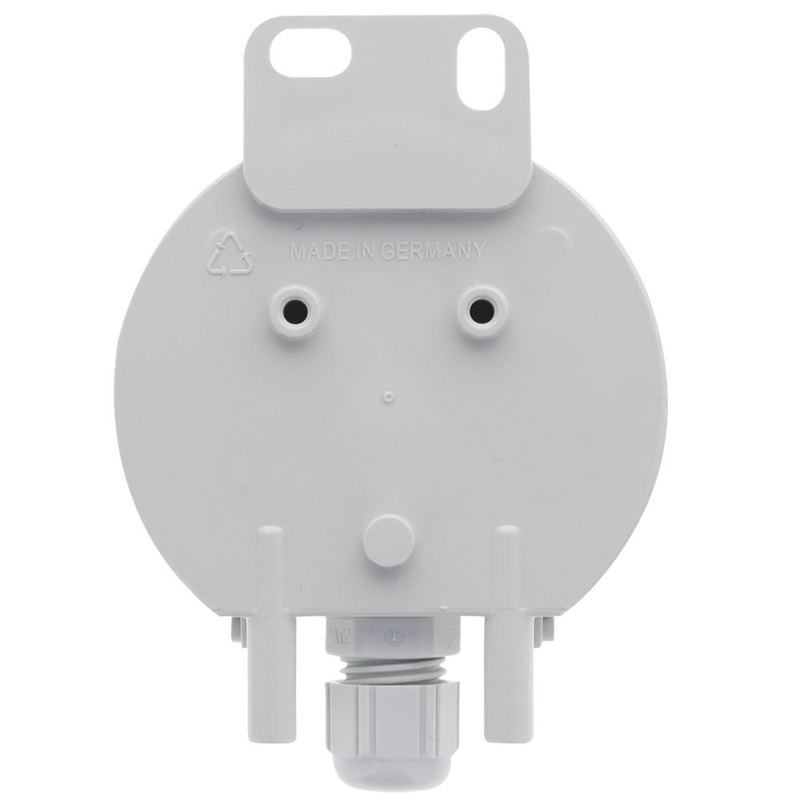

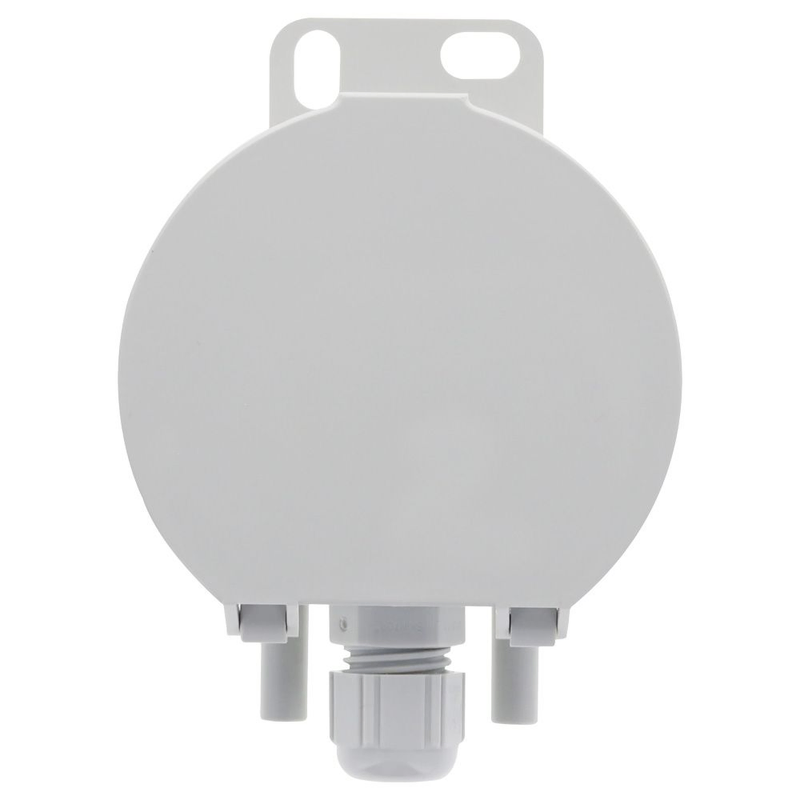

Dwyer, Differential Pressure Transmitter, 750 Pa, 0-10 V Output 685-10-V
Mfr. Model: 685-10-V
Related Documents
Description
Dwyer, Differential Pressure Transmitter, 750 Pa, 0-10 V Output 685-10-V
The Series 685 Differential Pressure Transmitter is used to measure differential pressure and vacuum. The adjustable pressure range and output signal make it the ideal choice for installers and maintenance professionals. It has a user-configurable response time via a jumper and can be mounted in any orientation. Applications include building automation systems, clean room monitoring, valve and flap control, filter monitoring, and air flow control. It has an adjustable pressure range, a single button to zero, and can be reset to factory settings with a long button press. No additional reference pressure sources or separate calibration devices are necessary.
Features & Benefits
- Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
- Single Button to Zero Saves Maintenance Time
- Factory Restore to Defaults with a Long Button Press
- User-Adjustable Response Time Provides Versatility for Many Applications
- Application: Building Automation, Air-Conditioning and Clean Room Technology, Valve and Shutter Control, Filter, Ventilator and Fan Monitoring, Air-Flow Control
- Service: Air and Non-Corrosive Gases
- Sensor Type: Piezoresistive Pressure Sensor
- Supply Voltage: 3-Wire: 18-30 VAC/DC
- Supply Voltage: 3-Wire: 18-30 VAC/DC
- Long-Term Stability: ? ±1 Percentage RSS Per Year
Specifications
| Manufacturer | Dwyer |
| MFR. Model | 685-10-V |
| Accuracy | Less Than or Equal +/- 0.5% RSS |
| Display Type | No Display |
| Mount Type | Surface Mount |
| Output | 0-10 V |
| Range | 750 Pa |
| Type | Differential Pressure Transmitter |
