599-10318

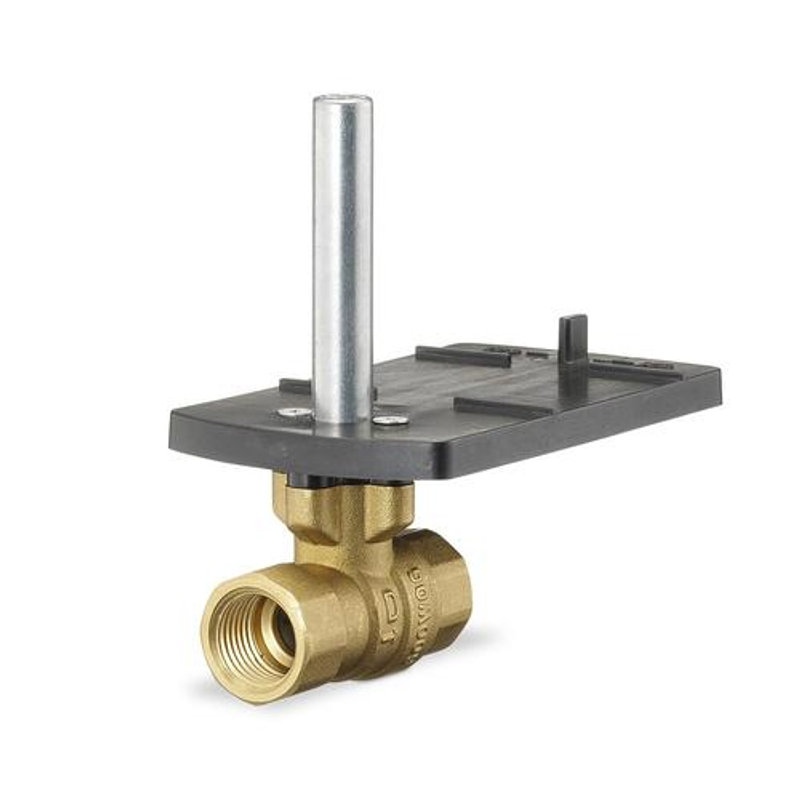

Siemens, Ball Valve, 1-/14 Inch, 2-Way Normally Open, 25 Cv, Equal-Percentage, 599-10318
Mfr. Model: 599-10318
Related Documents
Description
Siemens, Ball Valve, 1-/14 Inch, 2-Way Normally Open, 25 Cv, Equal-Percentage, 599-10318
This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-1/4-inch valve is 25 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.
Features & Benefits
- ANSI 250 valve body rating.
- 200 psi close-off with ANSI Class IV leakage for all line sizes and actuators.
- Available with chrome-plated brass ball and brass stem or 316 stainless steel ball and stem.
- Blow-out proof stem withstands high pressure.
- Universal mounting plate.
- Actuator and plate can be rotated [90-degree increments].
- Standoffs provide a thermal barrier between the actuator and the mounting plate.
Specifications
| Manufacturer | Siemens |
| Brand/Series | Siemens |
| MFR. Model | 599-10318 |
| ANSI Class | ANSI 250/600 WOG |
| Body Material | Brass |
| Close-off Pressure | 200 PSI |
| Connection Type | Female NPT |
| Flow Characteristic | Equal Percentage |
| Flow Coefficient | 25 Cv |
| Fluid Type | Chilled or hot water up to 50% glycol |
| Pattern | 2 Way |
| Size | 1 1/4 Inch |
| Valve Trim | Chrome-Plated Ball with Brass Stem |
| Valve Type | Ball Valve |
