Heat-Timer  | SKU: 926710-00

926710-00 | Heat-Timer | Mini Mod

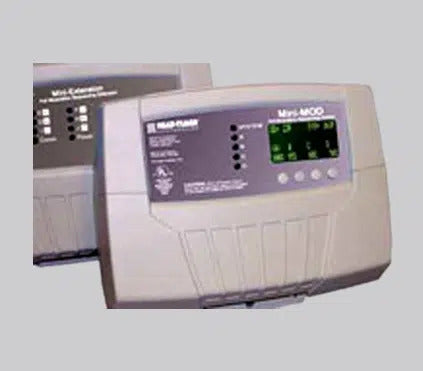

HeatTimer Mini-MOD Outdoor Reset Modulating Boiler Control with System Sensors 926710-00
$1,929.90 $2,882.00
Shipping calculated at checkout.

926710-00 | Heat-Timer | Mini Mod is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock

Usually ships next day

Calculated at checkout
Save Product

Description

Outdoor Reset Modulating Boiler Control. The Mini-Mod is an outdoor reset modulating boiler control. It is the perfect control whenever multiple fully modulating hot water boilers are used in building heating applications. The Mini-Mod controls the on/off and the modulation of each stage to maintain precise set point control using PID type control logic. Controls 0-5 V, 0-10 V, 1-5 V, 2-10 V, or 4-20 mA modulating motors.

Product Specifications

Name Value
Category Heating Control Systems
Data Sheet Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Features and benefits RWB Mod Motor Output (0-5 V, 0-10 V, 1-5 V, 2-10 V, and 4-20 mA) and N.O. Contacts for Each Stage | Automatic or Manual Lead Stage Rotation | Manual Overrides for Each Stage | Display of Percent Modulation of Each Stage | Digital Display of - System Temperature, System Set Point, and Control Parameters | Can be Cascaded to Provide as Many Stages as Needed Using Up to Two Mini-Extension Panels (Each can Control Up to 6 Boilers) Up to a Total of 16 Boilers | The Option of Using Outdoor Reset, Set Point, or Receive an External Set Point From an EMS/BMS System AS 4-20Ma (Requires the use Of 4-20Ma EMS Interface) | Can be Field Configured for Remote Setback or Based on the Controls Day/Night Schedule | Domestic Hot Water Capability with Optional Priority | Built-in Outdoor Reset
P21 delete flag false
Product category Relays & Contactors
Product subcategory Heating Control Systems
Restricted class id NULL
Restricted item false
Series Heat-Timer
Short desc HeatTimer Mini-MOD Outdoor Reset Modulating Boiler Control with System Sensors 926710-00
Supplier part number 926710-00
Ultra store sync us Yes
Vendor active Y
Yorkland id 926710-00

Features and Benefits

RWB Mod Motor Output (0-5 V, 0-10 V, 1-5 V, 2-10 V, and 4-20 mA) and N.O. Contacts for Each Stage | Automatic or Manual Lead Stage Rotation | Manual Overrides for Each Stage | Display of Percent Modulation of Each Stage | Digital Display of - System Temperature, System Set Point, and Control Parameters | Can be Cascaded to Provide as Many Stages as Needed Using Up to Two Mini-Extension Panels (Each can Control Up to 6 Boilers) Up to a Total of 16 Boilers | The Option of Using Outdoor Reset, Set Point, or Receive an External Set Point From an EMS/BMS System AS 4-20Ma (Requires the use Of 4-20Ma EMS Interface) | Can be Field Configured for Remote Setback or Based on the Controls Day/Night Schedule | Domestic Hot Water Capability with Optional Priority | Built-in Outdoor Reset
