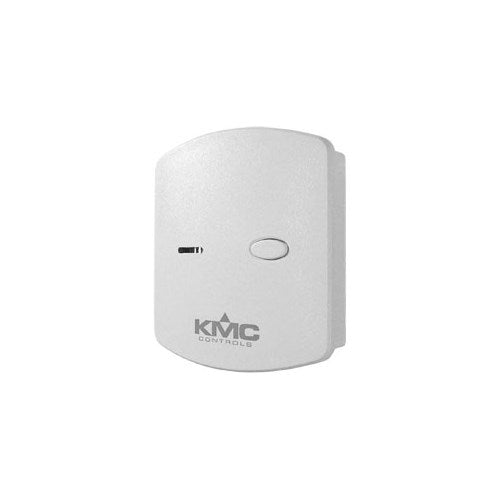

STE-6015W10 | KMC Controls | Sensor: Room Temp, LED, Override,

These Compact, Stylish, and Economical Room Temperature Sensors are Designed for Use with KMC Digital Controllers. They Incorporate a 10,000 Ohm (at 77 Deg F) Thermistor for Precise, Stable Temperature Sensing. The Durable, Low-Profile, Thermostat-Style Cover is Visually Appealing. These Sensors May be Surface Mounted on a Hollow Wall or (Using an HMO-6036 Universal Backplate) to a 2 x 4 Inch Electrical Box.STE-6015 Models Include a Button and LED. Pushing the Button on the Front Allows Selection of an Override Condition. A Green Status LED can Illuminate According to the User-Defined Controller Configuration (E.G., During Setback/Setup or During Normal/Override Modes).They have an RJ-45 Modular Jack for Quick Connections. For Connecting to KMC KMDigital Controllers and KMC Legacy BAC-58×1 and BAC-7xxx BACnet Controllers, Use a (Custom) KMD-5693 (25 Feet), KMD-5694 (50 Feet), or KMD-5695 (75 Feet) Cable. A Four-Pin EIA-485 (Formerly RS-485) Data Port on the Cover's Underside Provides an Easy Temporary Computer Connection to the Network, Using a: BAC-5051E Router and HPO-5551 Router Technicians Cable for BACnet Networks; KMD-5576 USB-to-485 Converter for KMDigital Networks. NOTE: They are Not Fully Compatible with KMC Conquest BAC-59xx and BAC-9xxx Controllers. See the STE-6010/6014/6017 Models Instead.
