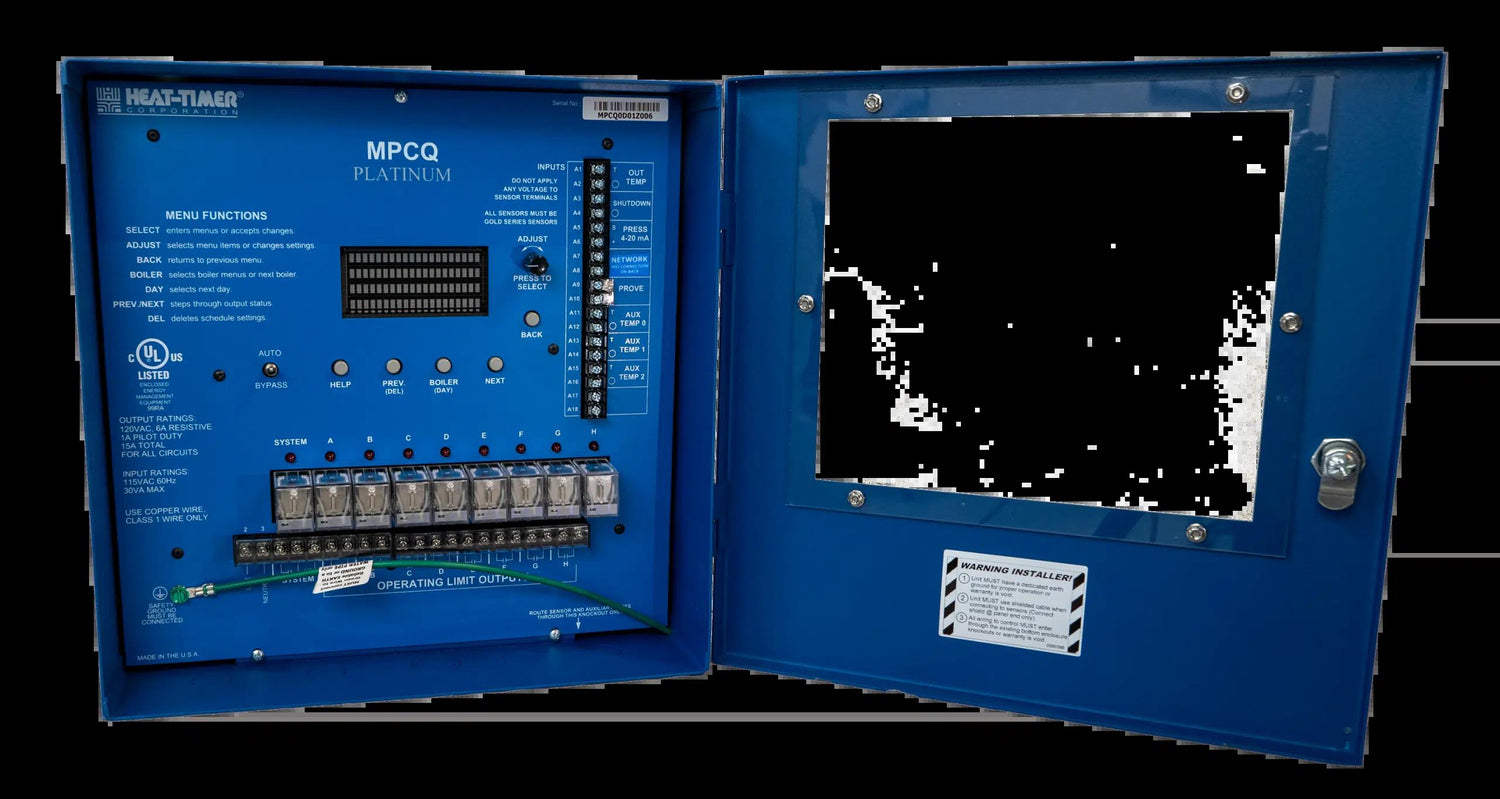

926790-RINET | Heat-Timer | MPC-Q Complete with Internet Capability

The MPCQ Platinum control Series is steam outdoor reset multi-boiler heating control. It is designed to control multiple steam boilers in single-pipe and two-pipe steam heating systems. It either utilizes the steam cycle concept and the outdoor temperature, the control varies the duration of the steam supply to the building in a cycle based on the outdoor temperature. Or, sequence the boilers to achieve a fixed set point. Each of these options has a set of pre-configured, but adjustable settings to meet the specific needs of each building. The MPCQ Platinum will reduce fuel costs while maintaining a more comfortable space temperature. The MPCQ Platinum varies the duration of steam flow into a building by controlling up to 8 boiler stages (8 on/off or 4 lo/hi). Additional stages can be added with an Extension Panel. The Internet communication package offers a large group of optional sensors that can be monitored, logged, and used to trigger remote alarms. In addition, Heat-Timer can provide a cellular Internet connection to the control.
