Data Centers  | SKU: NFX24-SN4

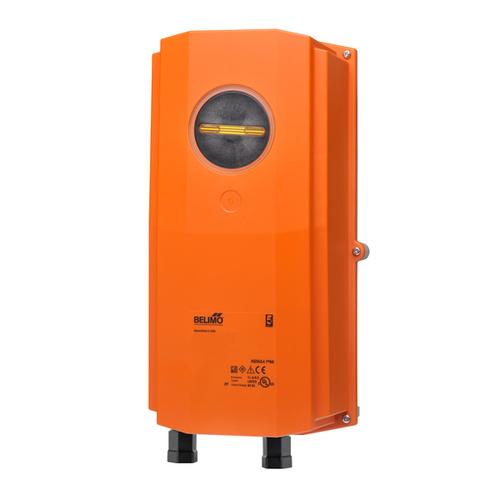

NFX24-S N4 | Belimo | 90 in-lb FS 24V On/Off 2xAUX N4X

Belimo, Configurable Damper Actuator, 90 in-lb (10 Nm), Spring Return, AC/DC 24 V, On/Off, 2 x SPDT, NEMA 4X, NFX24-S N4
$832.50 $1,850.00
Shipping calculated at checkout.

Delivery

In stock (5 units)

Usually ships next day

Calculated at checkout

Description

New AF and NF spring return actuators provide more features in a smaller housing, about 25% smaller! Low power consumption, increased torque to 90 in-lb (50% more compared to original NF series) and 180 in-lb (35% more compared to the original AF series), and faster running times (with MFT technology) offer new solutions for control dampers, control valves and retrofi t applications

Product Specifications

Name Value
Category Damper
Configuration 2 SPDT Switches
Control input On/Off (2-Position)
Control type On/Off (2-Position)
Description New AF and NF spring return actuators provide more features in a smaller housing, about 25% smaller! Low power consumption, increased torque to 90 in-lb (50% more compared to original NF series) and 180 in-lb (35% more compared to the original AF series), and faster running times (with MFT technology) offer new solutions for control dampers, control valves and retrofi t applications
Data Sheet Download
Installation Guide Download
Display name 1 Data Sheet
Display name 2 Installation Instructions
Electrical connection Terminals
Enclosure type NEMA 4X
Fail safe Spring Return
Features and benefits {'Features_and_Benefits_2': '(2) 3 ft [1m], 10 ft [3m] or 16 ft [5m] 18 GA appliance cables, with 1/2" conduit connectors', 'Features_and_Benefits_3': '8.5 VA (class 2 power source)', 'Features_and_Benefits_5': 'NFX24-S N4'}
Manual override 5mm Hex Crank (3/16" Allen), Supplied
P21 delete flag false
Power consumption (holding) 2.5 W
Power consumption (running) 6 W
Power supply 24 VAC/VDC
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation Selectable by cw/ccw mounting
Running time Less Than 75 Second
Shaft diameter 1/2...1.05" round centers on 3/4" with insert 1.05" without insert
Short desc Belimo, Configurable Damper Actuator, 90 in-lb (10 Nm), Spring Return, AC/DC 24 V, On/Off, 2 x SPDT, NEMA 4X, NFX24-S N4
Sku BEL-NFX24SN4
Supplier part number NFX24-SN4
Torque 90 in-lbs
Type Rotary Damper Actuator - Fail-Safe
Ultra store sync us Yes
Vendor active Y

Features and Benefits

{'Features_and_Benefits_2': '(2) 3 ft [1m], 10 ft [3m] or 16 ft [5m] 18 GA appliance cables, with 1/2" conduit connectors', 'Features_and_Benefits_3': '8.5 VA (class 2 power source)', 'Features_and_Benefits_5': 'NFX24-S N4'}
