Dampers & Actuators  | SKU: M7284Q1098/U

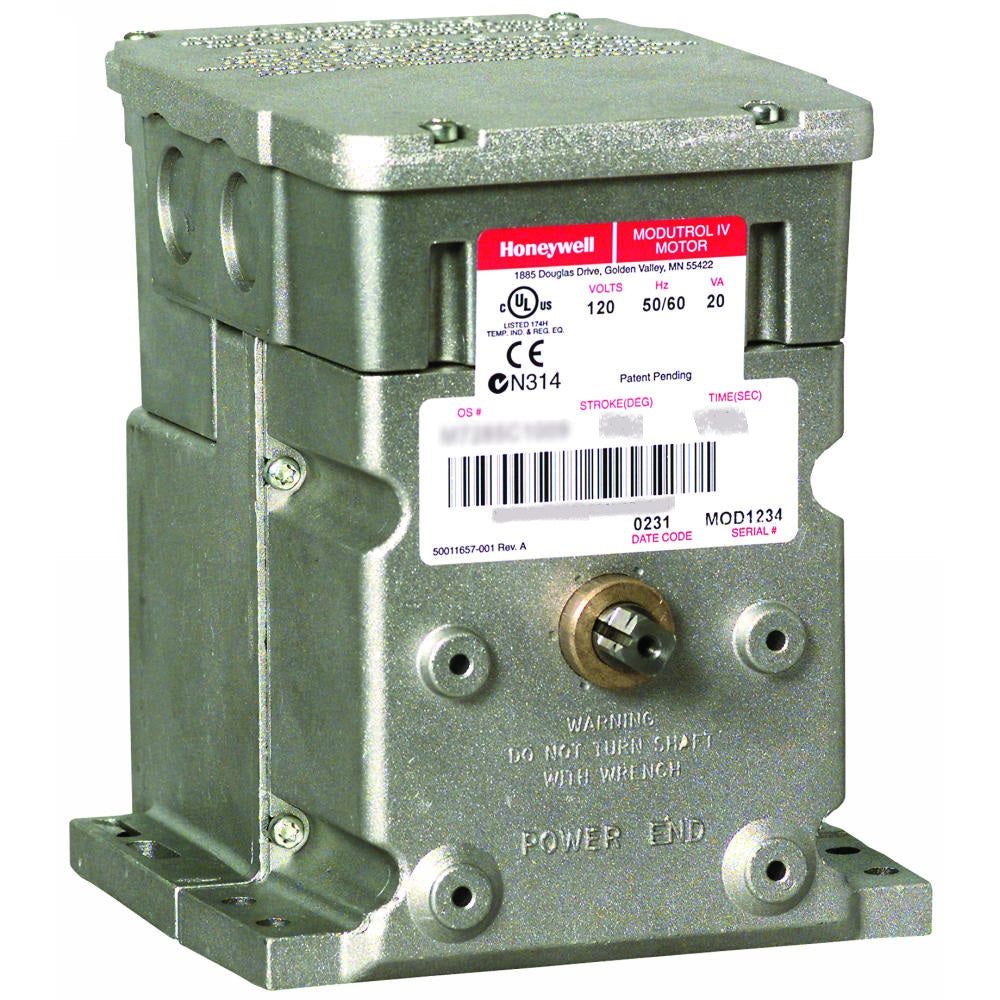

M7284Q1098/U | Honeywell | SERIES 72 MODUTROL MOTOR WITH ADJUSTABLE

Honeywell Modutrol IV Motor Actuator, Non-Spring Return, 150 lbs-Inch, 24 VAC, Modulating (2 to 10 VDC), Adjustable 90-160 deg, 30-53 Seconds M7284Q1098/U
$2,142.32 $3,386.50
Shipping calculated at checkout.

M7284Q1098/U | Honeywell | SERIES 72 MODUTROL MOTOR WITH ADJUSTABLE is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock

Usually ships next day

Calculated at checkout
Save Product

Description

Series 72 Modutrol IV Motors are non-spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve.

Product Specifications

Name Value
Application Damper
Category Foot Mount
Control type Modulating (2 to 10 VDC)
Description Series 72 Modutrol IV Motors are non-spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve.
Data Sheet Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Features and benefits {'Features_and_Benefits_1': 'Replaces M734H/J, M744ST/Y and M745L/S/T/Y Motors', 'Features_and_Benefits_2': 'Integral Junction Box Provides NEMA 3 Weather Protection', 'Features_and_Benefits_3': 'Adapter Bracket for Matching Shaft Height of Older Motors is Available', 'Features_and_Benefits_4': 'Most Motors Have Field Adjustable Stroke (90 to 160 deg)', 'Features_and_Benefits_5': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_6': 'Integral Auxiliary Switches are Available Factory Mounted, or Can be Field Added', 'Features_and_Benefits_7': 'UL Listed: File Number E4436; Guide Number XAPX for USA and Canada'}
P21 delete flag false
Power supply 24 VAC
Product category Dampers & Actuators
Product subcategory Non-Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation CW
Running time 30-53 Second
Series Honeywell
Short desc Honeywell Modutrol IV Motor Actuator, Non-Spring Return, 150 lbs-Inch, 24 VAC, Modulating (2 to 10 VDC), Adjustable 90-160 deg, 30-53 Seconds M7284Q1098/U
Sku HWI-M7284Q1098U
Supplier part number M7284Q1098/U
Torque 150 lbs-Inch
Type Non-Spring Return
Ultra store sync us Yes
Upc yorkland
Vendor active Y
Yorkland id M7284Q1098/U

Features and Benefits

{'Features_and_Benefits_1': 'Replaces M734H/J, M744ST/Y and M745L/S/T/Y Motors', 'Features_and_Benefits_2': 'Integral Junction Box Provides NEMA 3 Weather Protection', 'Features_and_Benefits_3': 'Adapter Bracket for Matching Shaft Height of Older Motors is Available', 'Features_and_Benefits_4': 'Most Motors Have Field Adjustable Stroke (90 to 160 deg)', 'Features_and_Benefits_5': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_6': 'Integral Auxiliary Switches are Available Factory Mounted, or Can be Field Added', 'Features_and_Benefits_7': 'UL Listed: File Number E4436; Guide Number XAPX for USA and Canada'}
