22G15-5A5

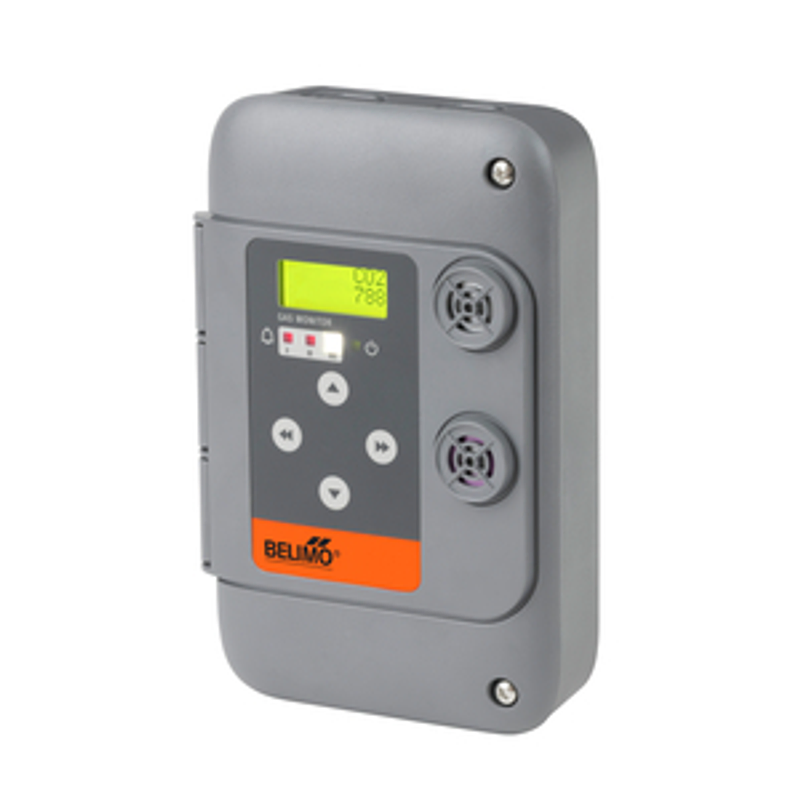

Belimo Gas Monitor, CO2: 0-5,000 ppm, CAN Bus, BACnet MS/TP, Auxiliary Switch 1 x SPDT, Number of Relays 1 22G15-5A5
Mfr. Model: 22G15-5A5

Related Documents

Description

Belimo Gas Monitor, CO2: 0-5,000 ppm, CAN Bus, BACnet MS/TP, Auxiliary Switch 1 x SPDT, Number of Relays 1 22G15-5A5
Belimo gas monitors are factory calibrated and can monitor up to two gases simultaneously. All monitors feature audible and visual alarms and CAN bus communication, allowing for standalone operation and networking of up to 32 devices. Select models feature relays and analog outputs to control ventilation directly, as well as BACnet MS/TP allowing for integration into a BMS. All gas monitors are wired via a daisy chain and are backed by a five-year warranty.

Features & Benefits

  • Measuring Range: CO2: 0-5,000 ppm
  • Power Supply: 24 V AC
  • Analog Outputs: 2-10 V or 4-20 mA, User Selectable with Jumper
  • Relays: SPDT, 5A @ AC 125 V, Non-Inductive

Specifications

ManufacturerBelimo
Brand/Series22G
MFR. Model22G15-5A5
DisplayLCD
Output SignalBACnet, CAN bus, 2-10 V, 4-20 mA, 1 Relay
Sensing ElementElectrochemical
TypeGas Monitor - CO2
