Dampers & Actuators  | SKU: M7285C1009/U

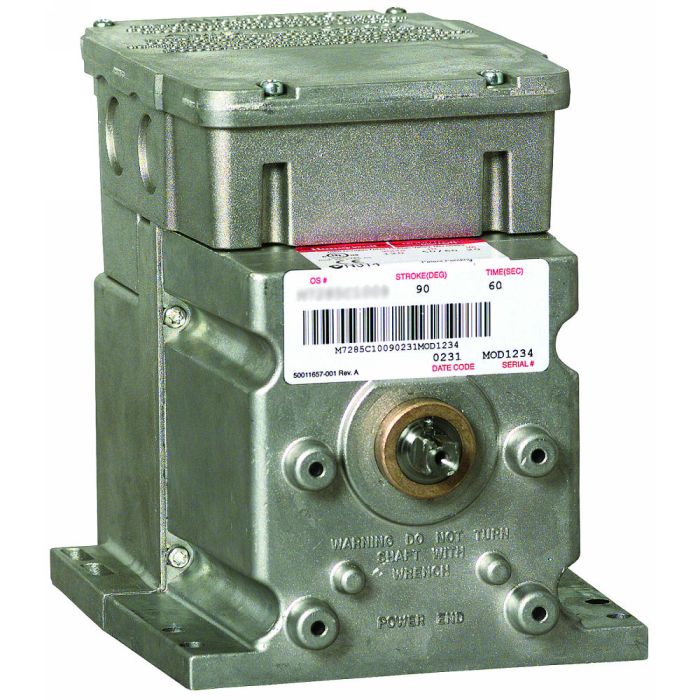

M7285C1009/U | Honeywell | VALVE/DAMPER ACTUATOR

Honeywell Modutrol IV Motor Actuator, Spring Return, 60 lbs-Inch, 120 VAC, Modulating (4-20 mA), Adjustable 90-160 deg, 30-60 Seconds M7285C1009/U
$2,323.60 $3,673.05
Shipping calculated at checkout.

Delivery

In stock (4 units)

Usually ships next day

Calculated at checkout
Save Product

Description

Series 72 Modutrol IV Motors are spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve.

Product Specifications

Name Value
Application Damper
Category Foot Mount
Control type Modulating (4-20 mA)
Description Series 72 Modutrol IV Motors are spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve.
Data Sheet Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Features and benefits {'Features_and_Benefits_1': 'Replaces M734H/J, M744ST/Y and M745L/S/T/Y Motors', 'Features_and_Benefits_10': 'UL Listed: File Number E4436; Guide Number XAPX for USA and Canada', 'Features_and_Benefits_2': 'Integral Spring Return Returns Motor to Normal Position when Power is Interrupted', 'Features_and_Benefits_3': 'Integral Junction Box Provides NEMA 3 Weather Protection', 'Features_and_Benefits_4': 'Motor and Circuitry Operate from 24 VAC; Models Available with Factory Installed Transformer, or a Field Added Internal Transformer', 'Features_and_Benefits_5': 'Quick Connect Terminals are Standard - Screw Terminal Adapter is Available', 'Features_and_Benefits_6': 'Adapter Bracket for Matching Shaft Height of Older Motors is Available', 'Features_and_Benefits_7': 'Most Motors Have Field Adjustable Stroke (90 to 160 deg)', 'Features_and_Benefits_8': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_9': 'Integral Auxiliary Switches are Available Factory Mounted, or Can be Field Added'}
P21 delete flag false
Power supply 120 VAC
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation CW
Running time 30-60 Second
Series Honeywell
Short desc Honeywell Modutrol IV Motor Actuator, Spring Return, 60 lbs-Inch, 120 VAC, Modulating (4-20 mA), Adjustable 90-160 deg, 30-60 Seconds M7285C1009/U
Sku HWI-M7285C1009U
Supplier part number M7285C1009/U
Torque 60 lbs-Inch
Type Spring Return
Ultra store sync us Yes
Upc yorkland
Vendor active Y
Yorkland id M7285C1009/U

Features and Benefits

{'Features_and_Benefits_1': 'Replaces M734H/J, M744ST/Y and M745L/S/T/Y Motors', 'Features_and_Benefits_10': 'UL Listed: File Number E4436; Guide Number XAPX for USA and Canada', 'Features_and_Benefits_2': 'Integral Spring Return Returns Motor to Normal Position when Power is Interrupted', 'Features_and_Benefits_3': 'Integral Junction Box Provides NEMA 3 Weather Protection', 'Features_and_Benefits_4': 'Motor and Circuitry Operate from 24 VAC; Models Available with Factory Installed Transformer, or a Field Added Internal Transformer', 'Features_and_Benefits_5': 'Quick Connect Terminals are Standard - Screw Terminal Adapter is Available', 'Features_and_Benefits_6': 'Adapter Bracket for Matching Shaft Height of Older Motors is Available', 'Features_and_Benefits_7': 'Most Motors Have Field Adjustable Stroke (90 to 160 deg)', 'Features_and_Benefits_8': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_9': 'Integral Auxiliary Switches are Available Factory Mounted, or Can be Field Added'}
