Dampers & Actuators  | SKU: AMX24-MFT

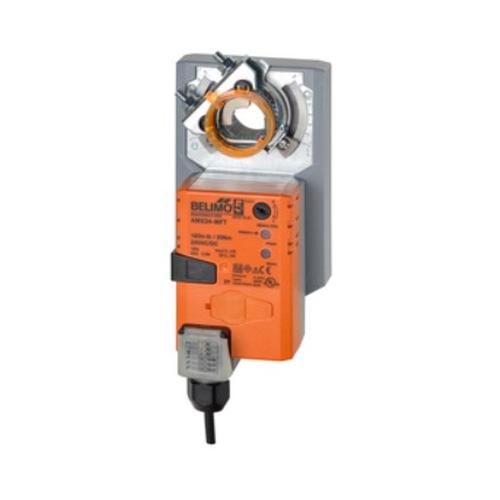

AMX24-MFT | Belimo | 180 in-lb NFS 24V 2-10V MFT/Prog

Belimo, Configurable Damper Actuator, 180 in-lb (20 Nm), Non Fail-Safe, AC/DC 24 V, 2...10 V, MFT/programmable, AMX24-MFT
$410.39 $912.00
Shipping calculated at checkout.

Delivery

In stock (23 units)

Usually ships next day

Calculated at checkout
Save Product

Description

The AMX actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp, self-centered default. The actuator provides 95 degree of rotation and a visual indicator indicates position of the actuator. The actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator €™s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition.

Product Specifications

Name Value
Category Damper
Control input Modulating (0–10V / 4–20mA / Configurable)
Control type Modulating (0–10V / 4–20mA / Configurable)
Description The AMX actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp, self-centered default. The actuator provides 95 degree of rotation and a visual indicator indicates position of the actuator. The actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator €™s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition.
Data Sheet Download PDF
Installation Guide Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Electrical connection Cable
Enclosure type NEMA 2
Fail safe Non Fail-Safe
Features and benefits {'Features_and_Benefits_1': 'Position Feedback - 2 to 10 VDC, 0.5 mA max, VDC variable', 'Features_and_Benefits_2': '18 GA plenum rated cable with 1/2" conduit connector protected NEMA 2 (IP54) 3ft [1m] 10 ft [3m] and 16 ft [5m]', 'Features_and_Benefits_3': 'default 150 s, running time with a variable of 90...350 s', 'Features_and_Benefits_4': '95 sec run time', 'Features_and_Benefits_5': '24V AC/DC Voltage'}
Manual override External push button
Most popular Yes
P21 delete flag false
Power consumption (holding) 1.3 W
Power consumption (running) 3.5 W
Power supply 24 VAC/VDC
Product category Dampers & Actuators
Product subcategory Non-Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation 95 Deg
Running time 150 Second/90 deg
Shaft diameter 1/2...1.05" round, centers on 1/2" and 3/4" with insert, 1.05" without insert
Short desc Belimo, Configurable Damper Actuator, 180 in-lb (20 Nm), Non Fail-Safe, AC/DC 24 V, 2...10 V, MFT/programmable, AMX24-MFT
Sku BEL-AMX24MFT
Supplier part number AMX24-MFT
Torque 180 in-lbs
Type Rotary Damper Actuator - Non-Fail Safe
Ultra store sync us Yes
Vendor active Y
Yorkland id AMX24-MFT

Features and Benefits

{'Features_and_Benefits_1': 'Position Feedback - 2 to 10 VDC, 0.5 mA max, VDC variable', 'Features_and_Benefits_2': '18 GA plenum rated cable with 1/2" conduit connector protected NEMA 2 (IP54) 3ft [1m] 10 ft [3m] and 16 ft [5m]', 'Features_and_Benefits_3': 'default 150 s, running time with a variable of 90...350 s', 'Features_and_Benefits_4': '95 sec run time', 'Features_and_Benefits_5': '24V AC/DC Voltage'}
