Dampers & Actuators  | SKU: AFRB24-SR

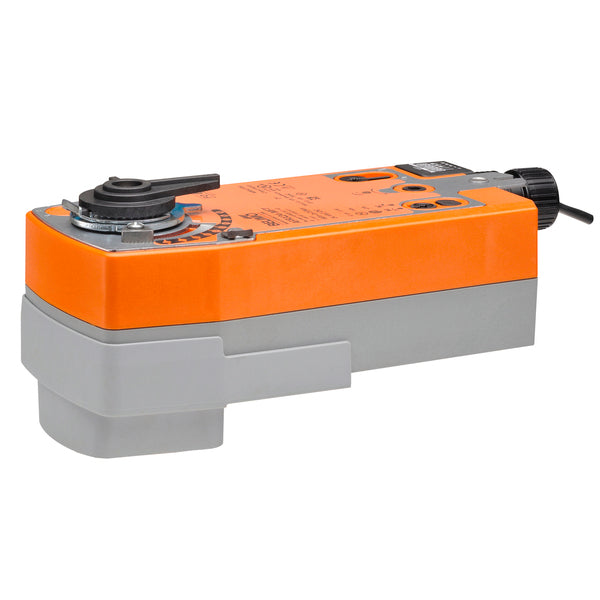

AFRB24-SR | Belimo | Valve Actuator FS 24V 2-10V Mod

Belimo, Valve Actuator, Spring Return, 24 VAC/VDC, 2-10 V, Modulating, NEMA 2 AFRB24-SR
$505.35 $1,123.00
Shipping calculated at checkout.

Delivery

In stock (57 units)

Usually ships next day

Calculated at checkout
Save Product

Description

The AF..UP series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides constant torque to the damper with, and without, power applied to the actuator. The AF..UP series provides 95 degree of rotation and is provided with a graduated position indicator showing 0degree to 95 degree.

Product Specifications

Name Value
Category Valve
Connection type Cable
Control type 2-10 VDC
Description The AF..UP series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides constant torque to the damper with, and without, power applied to the actuator. The AF..UP series provides 95 degree of rotation and is provided with a graduated position indicator showing 0degree to 95 degree.
Data Sheet Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Enclosure type UL Enclosure Type 2, IP54, NEMA 2
Fail safe Spring Return
Features and benefits {'Features_and_Benefits_1': 'Power Consumption for Wire Sizing: 8.5 VA', 'Features_and_Benefits_2': 'Direction of Motion Motor: Selectable with Switch', 'Features_and_Benefits_3': 'Direction of Rotation (Fail-Safe): Reversible with cw/ccw Mounting', 'Features_and_Benefits_4': 'Manual Override: 5mm Hex Crank (3/16 Inch Allen), Supplied', 'Features_and_Benefits_5': 'Protection Category: IP54', 'Features_and_Benefits_6': 'Degree of Protection NEMA: NEMA 2'}
Manual override 5mm Hex Crank (3/16 Inch Allen), Supplied
Most popular Yes
P21 delete flag false
Power consumption (holding) 3 W
Power consumption (running) 5.5 W
Power supply 24 VAC/VDC
Product category Dampers & Actuators
Restricted class id NULL
Restricted item false
Rotation 90 Deg.
Running time 95 Second/90 deg
Running time fail safe <20 Second
Series Belimo
Short desc Belimo, Valve Actuator, Spring Return, 24 VAC/VDC, 2-10 V, Modulating, NEMA 2 AFRB24-SR
Sku BEL-AFRB24SR
Supplier part number AFRB24-SR
Torque 180 in-lbs (20 Nm)
Type Electric Valve Actuator
Ultra store sync us Yes
Vendor active Y
Yorkland id AFRB24-SR

Features and Benefits

{'Features_and_Benefits_1': 'Power Consumption for Wire Sizing: 8.5 VA', 'Features_and_Benefits_2': 'Direction of Motion Motor: Selectable with Switch', 'Features_and_Benefits_3': 'Direction of Rotation (Fail-Safe): Reversible with cw/ccw Mounting', 'Features_and_Benefits_4': 'Manual Override: 5mm Hex Crank (3/16 Inch Allen), Supplied', 'Features_and_Benefits_5': 'Protection Category: IP54', 'Features_and_Benefits_6': 'Degree of Protection NEMA: NEMA 2'}
