ACI  | SKU: A/AN-I-2.5-GD

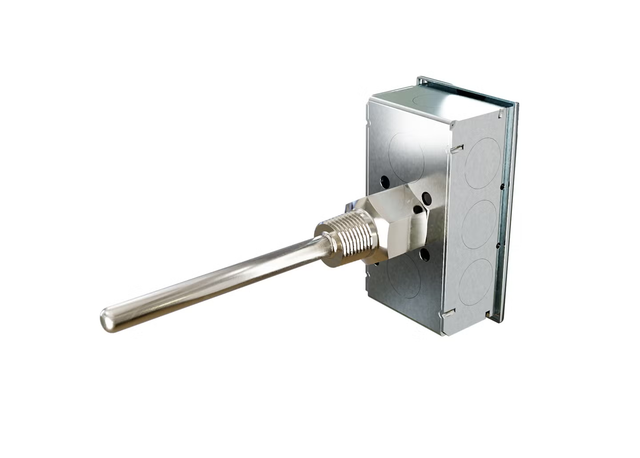

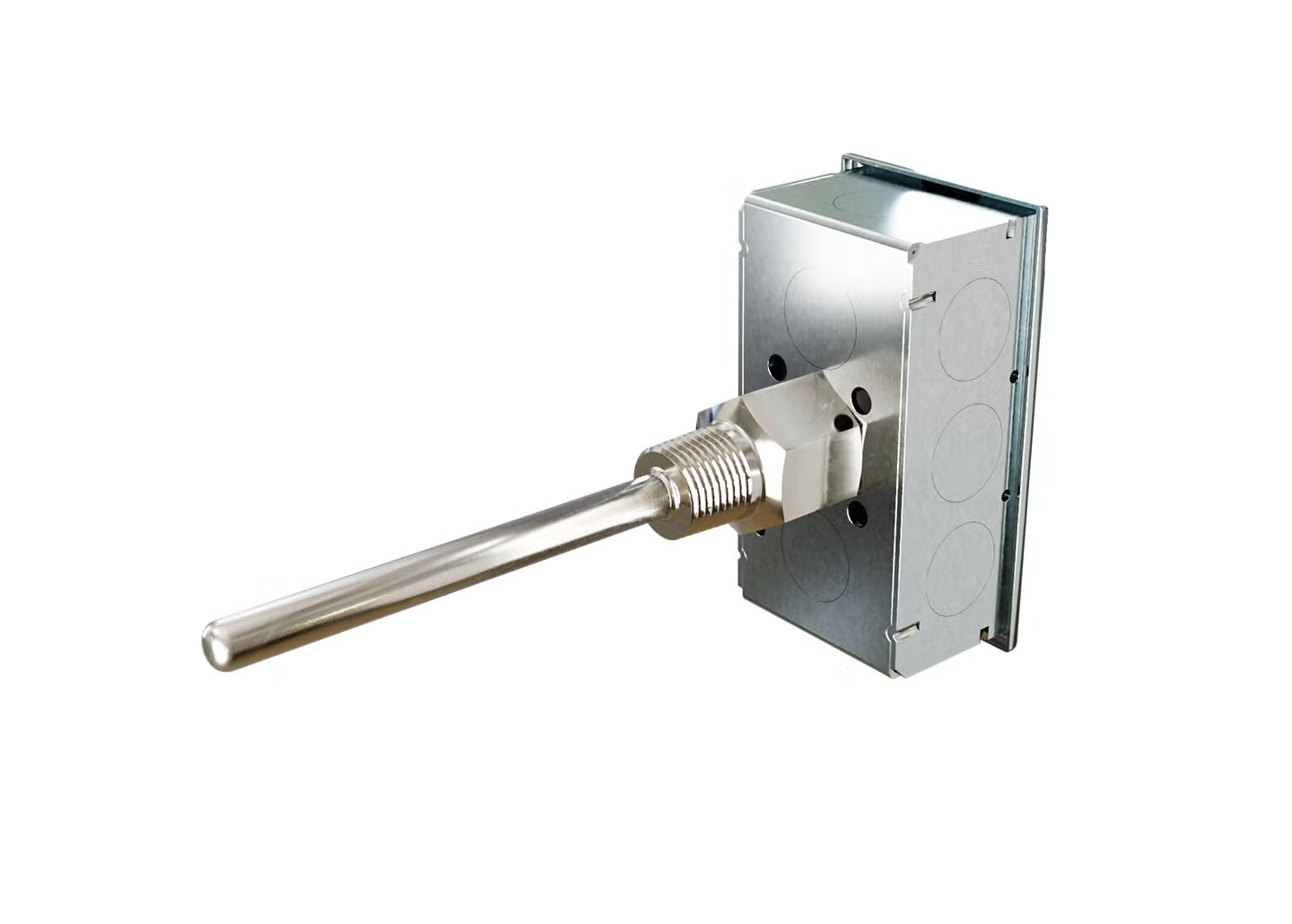

A/AN-I-2.5"-GD | ACI | 10,000 Ohm Thermistor (Type III), Immers

ACI 123285, 10,000 Ohm Thermistor (Type III), Immersion, Welded Well, 2.5", Galvanized Enclosure, A/AN-I-2.5"-GD
$56.45 $92.00
Shipping calculated at checkout.

Delivery

In stock (6 units)

Usually ships next day

Calculated at checkout
Save Product

Description

The ACI Thermistor Immersion Series features a 1/4 Inch (6.35mm) diameter stainless steel probe with two, 35.6 mm (14 in), 0.65 mm (22 AWG) Etched Teflon colored lead wires depending on the probe length ordered to differentiate the different sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture and to increase the response times using our high quality, thermally conductive epoxy. The immersion sensors include a welded thermowell “-I” version but can be ordered without the welded thermowell “-INW” version. The “INW” version includes a standard ½ in NPS Male process thread to be used with an optional machined thermowell or in an existing thermowell application. Optional NEMA/IP rated enclosures and NIST certificates are available the back of the product data sheet.

Product Specifications

Name Value
Application Immersion Sensor
Category Duct and Immersion
Configuration Welded Well
Description The ACI Thermistor Immersion Series features a 1/4 Inch (6.35mm) diameter stainless steel probe with two, 35.6 mm (14 in), 0.65 mm (22 AWG) Etched Teflon colored lead wires depending on the probe length ordered to differentiate the different sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture and to increase the response times using our high quality, thermally conductive epoxy. The immersion sensors include a welded thermowell “-I” version but can be ordered without the welded thermowell “-INW” version. The “INW” version includes a standard ½ in NPS Male process thread to be used with an optional machined thermowell or in an existing thermowell application. Optional NEMA/IP rated enclosures and NIST certificates are available the back of the product data sheet.
Data Sheet Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Enclosure type NEMA 1, Galvanized
Features and benefits {'Features_and_Benefits_1': 'Applications: Chilled Water Systems, Hot Water Systems, Boilers, Pumps, Compressor, Chillers', 'Features_and_Benefits_2': 'Features A 1/4 inch Diameter Stainless Steel Probe With Two, 14 in. 22 AWG Etched Teflon Colored Lead Wires To Differentiate The Different Sensor Types', 'Features_and_Benefits_3': 'Manufactured Using ACI’s Proven Double Encapsulation Process To Eliminate The Effects Of Moisture And To Increase The Response Times Using Our High Quality, Thermally Conductive Epoxy', 'Features_and_Benefits_4': 'Two Wire, Welded Well'}
Output signal Resistance
P21 delete flag false
Probe length 2.5 Inch
Probe material Stainless Steel 304
Restricted class id NULL
Restricted item false
Sensor type 10k Ohm Thermistor Type III
Series ACI
Short desc ACI 123285, 10,000 Ohm Thermistor (Type III), Immersion, Welded Well, 2.5", Galvanized Enclosure, A/AN-I-2.5"-GD
Sku ACI-AANI25GD
Supplier part number A/AN-I-2.5-GD
Ultra store sync us Yes
Vendor active Y

Features and Benefits

{'Features_and_Benefits_1': 'Applications: Chilled Water Systems, Hot Water Systems, Boilers, Pumps, Compressor, Chillers', 'Features_and_Benefits_2': 'Features A 1/4 inch Diameter Stainless Steel Probe With Two, 14 in. 22 AWG Etched Teflon Colored Lead Wires To Differentiate The Different Sensor Types', 'Features_and_Benefits_3': 'Manufactured Using ACI’s Proven Double Encapsulation Process To Eliminate The Effects Of Moisture And To Increase The Response Times Using Our High Quality, Thermally Conductive Epoxy', 'Features_and_Benefits_4': 'Two Wire, Welded Well'}
